H008C11A

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

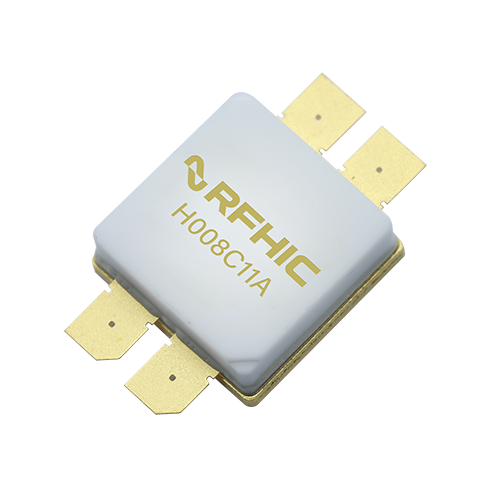

RFHIC’s H008C11A is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 3400 to 3800 MHz.The H008C11A delivers 174 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification

Datasheet
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

제품 사양

Min Freq.(MHz) 3400MHz
Max Freq.(MHz) 3800MHz
Typ Output Power(W) 26W
Saturation Power(W) 174W
Power Gain(dB) 14.1dB
Efficiency 44%
VDC(V) 48
Package RF12001DHKR3
Package Type Flange
