H002C12A

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

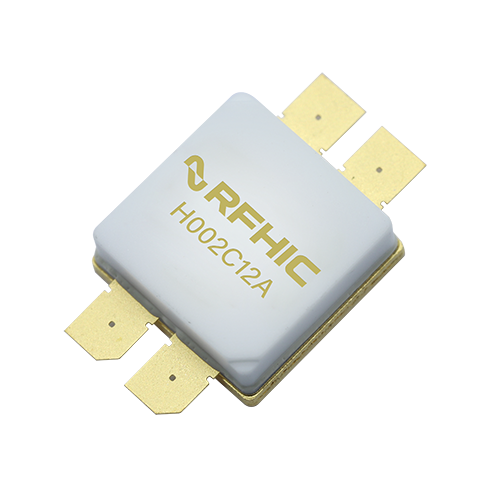

RFHIC’s H002C12A is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 2496 to 2690 MHz.The H002C11A delivers 195 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification

Datasheet
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

제품 사양

Min Freq.(MHz) 2496MHz
Max Freq.(MHz) 2690MHz
Typ Output Power(W) 32W
Saturation Power(W) 195W
Power Gain(dB) 14.4dB
Efficiency 53%
VDC(V) 48
Package RF12001DHKR3-PK2
Package Type Flange
