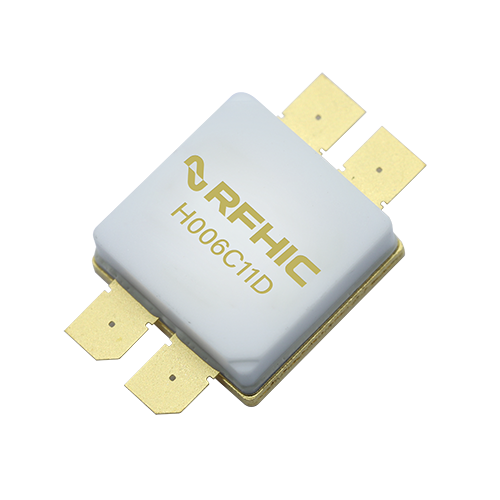

H006C11D

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

RFHIC’s H006C11D is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 1805 to 1880 MHz.The H006C11D delivers 220 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification

Datasheet
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

제품 사양

Min Freq.(MHz) 1805MHz
Max Freq.(MHz) 1880MHz
Typ Output Power(W) 45W
Saturation Power(W) 220W
Power Gain(dB) 15.8dB
Efficiency 54%
VDC(V) 48
Package RF12001DHKR3
Package Type Flange
