H009C11A

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

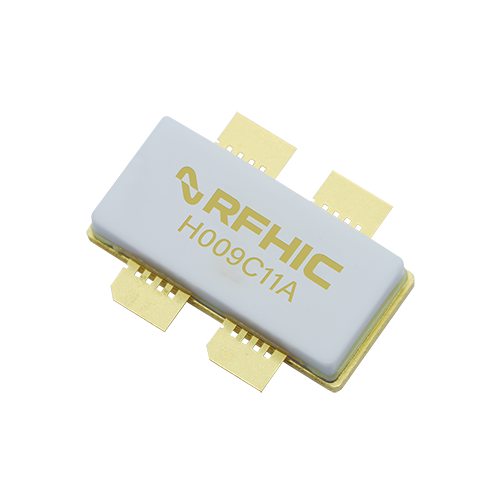

RFHIC’s H009C11A is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 1805 to 1880 MHz.The H009C11A delivers 385 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification

Datasheet
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

제품 사양

Min Freq.(MHz) 1805MHz
Max Freq.(MHz) 1880MHz
Typ Output Power(W) 63W
Saturation Power(W) 385W
Power Gain(dB) 15.1dB
Efficiency 55%
VDC(V) 48
Package RF24010DKR3
Package Type Flange
