H012C12D

GaN 트랜지스터 – 통신
Production
Contact
Sales

설명

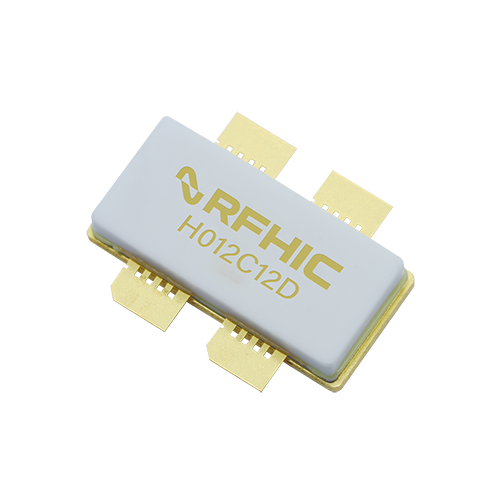

RFHIC’s H012C12D is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 758 to 821 MHz.The H012C12D delivers 440 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification

Datasheet
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

제품 사양

Min Freq.(MHz) 758MHz
Max Freq.(MHz) 821MHz
Typ Output Power(W) 79W
Saturation Power(W) 440W
Power Gain(dB) 17.5dB
Efficiency 56%
VDC(V) 48
Package RF24010DKR3
Package Type Flange
