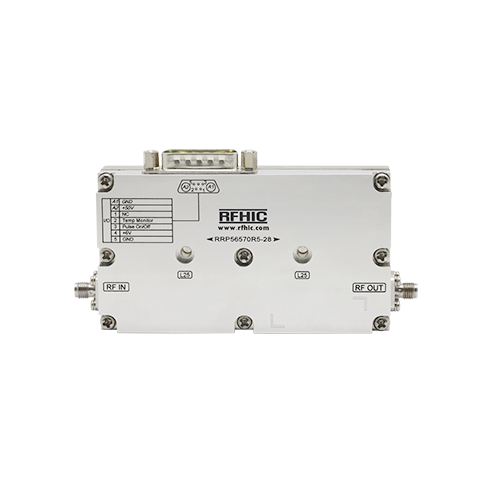

RRP56570R5-28
설명
RFHIC’s RRP56570R5-28 is a 0.6W, C-band, GaN solid-state power amplifier designed for various radar applications, including military and weather radar. The RRP56570R5-28 pulse amplifier pallet with a 10% duty cycle designed with RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) HEMT, providing excellent thermal stability and high breakdown voltage.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
제품 사양
| Band | C-band |
|---|---|
| Min Freq.(MHz) | 5600MHz |
| Max Freq.(MHz) | 5700MHz |
| Type | Pallet |
| Typ Output Power(W) | 0.6W |
| Power Gain(dB) | 28dB |
| RX Gain(dB) | -1dB |
| VDC(V) | 50 |
