SDM18003-30H

하이브리드 증폭기 - 통신
Production
Contact
Sales

설명

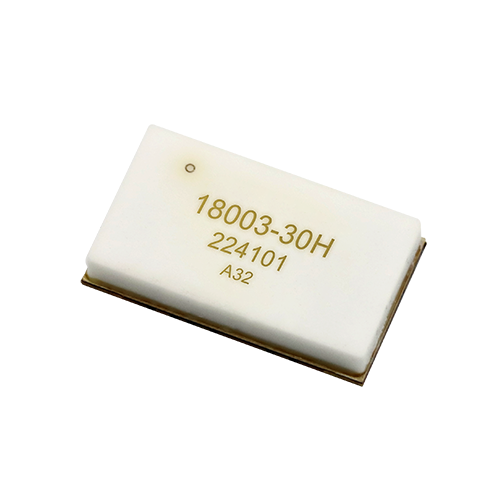

The SDM18003-30H is a fully integrated micro-strip GaN Hybrid power amplifier module designed for 5G m-MIMO, TDD/FDD systems, mobile infrastructure, small cells and low power remote radio heads. The SDM18003-30H operates from 1805 to 1880 MHz and delivers a saturated power of 44.1 W. This amplifier is internally matched to 50 ohms over the entire operating frequency range and provides a drain voltage of 48V. The SDM18003-30H is available in a packaged ceramic surface mount package that measures 8x14x2.6mm.

View Product Specification
Massive MIMO
4G, 5G System
RRH Drive Amplifier

제품 사양

Min Freq.(MHz) 1805MHz
Max Freq.(MHz) 1880MHz
Typ Output Power(W) 1.1W
Saturation Power(W) 44.1W
Power Gain(dB) 44dB
Efficiency 13%
VDC(V) 48
Package PP-3G
Package Type Surface Mount
