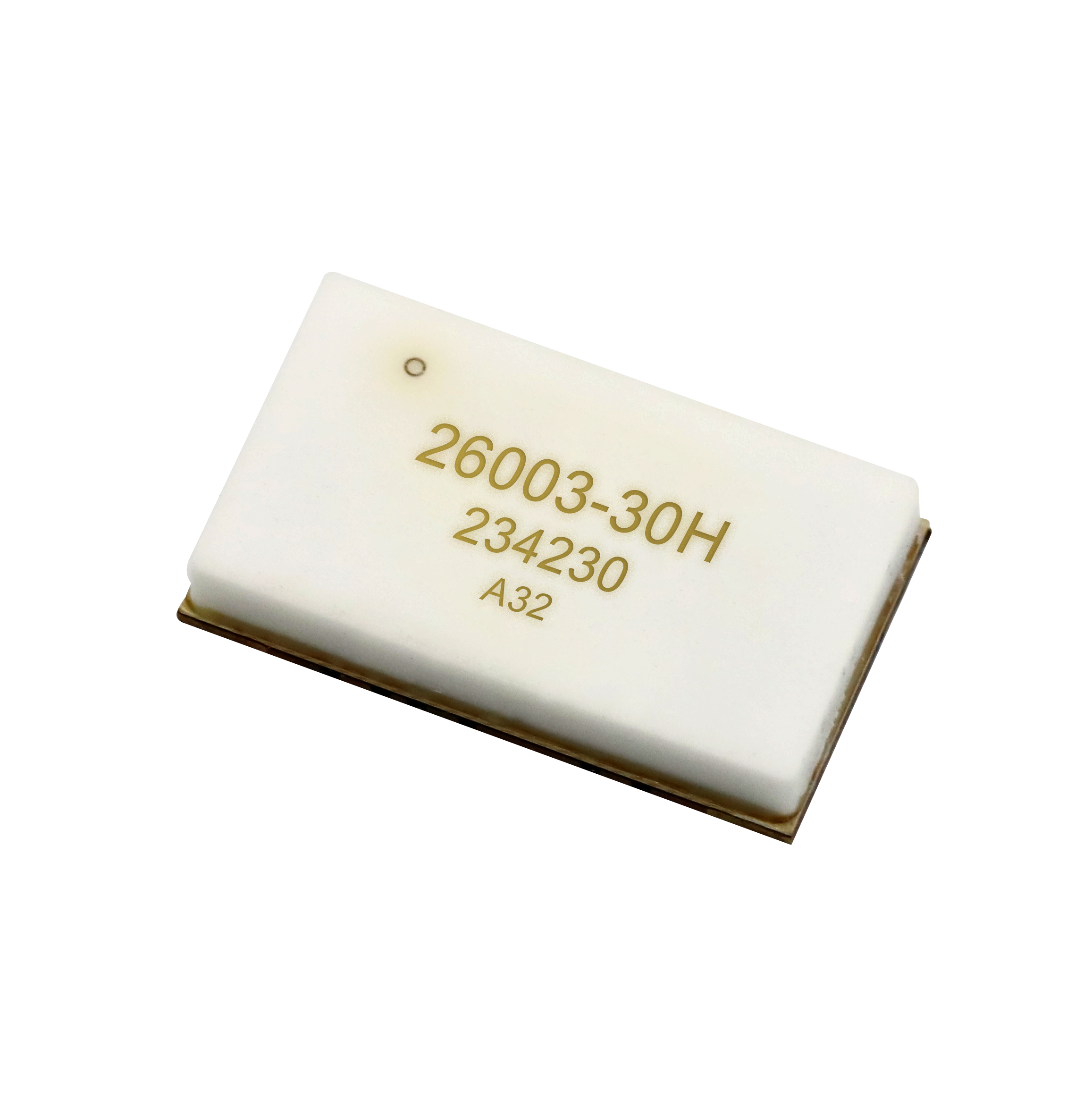

SDM26003-30H
설명
The 26003-30H is a fully integrated micro-strip GaN Hybrid power amplifier module designed for applications in 4G LTE MIMO systems, small cells and low power remote radio heads. 26003-30H operates from 2496 to 2690 MHz and delivers a saturated power of 44.7 W. This amplifier is internally matched to 50 ohms over the entire operating frequency range and provides a drain voltage of 48V. The 26003-30H is available in a packaged ceramic surface mount package that measures 8x14x2.6mm.
View Product Specification
4G LTE
MIMO
Drive Amplifier
Multi-Band
Multi-Carrier
제품 사양
| Min Freq.(MHz) | 2496MHz |
|---|---|
| Max Freq.(MHz) | 2690MHz |
| Typ Output Power(W) | 1.26W |
| Saturation Power(W) | 44.7W |
| Power Gain(dB) | 43dB |
| Efficiency | 13% |
| VDC(V) | 48 |
| Package | PP-3G |
| Package Type | Surface Mount |
