SDM26005-30H

하이브리드 증폭기 - 통신
Sample Available for purchase
Contact
Sales

설명

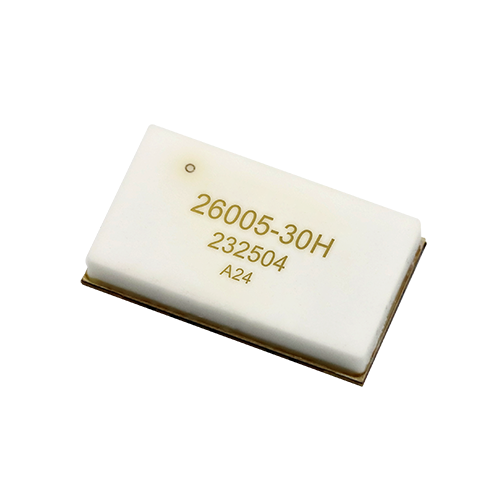

The SDM26005-30H is a fully integrated micro-strip GaN Hybrid power amplifier module designed for 5G m-MIMO, TDD/FDD systems, mobile infrastructure, small cells and low power remote radio heads. The SDM26005-30H operates from 1805 to 1880 MHz and delivers a saturated power of 60 W. This amplifier is internally matched to 50 ohms over the entire operating frequency range and provides a drain voltage of 48V. The SDM26005-30H is available in a packaged ceramic surface mount package that measures 8x14x2.6mm.

View Product Specification
Massive MIMO
4G, 5G Systems
RRH Drive Amplifier

제품 사양

Min Freq.(MHz) 2496MHz
Max Freq.(MHz) 2690MHz
Typ Output Power(W) 3.16W
Saturation Power(W) 60W
Power Gain(dB) 37dB
Efficiency 15%
VDC(V) 48
Package PP-3G
Package Type Surface Mount
