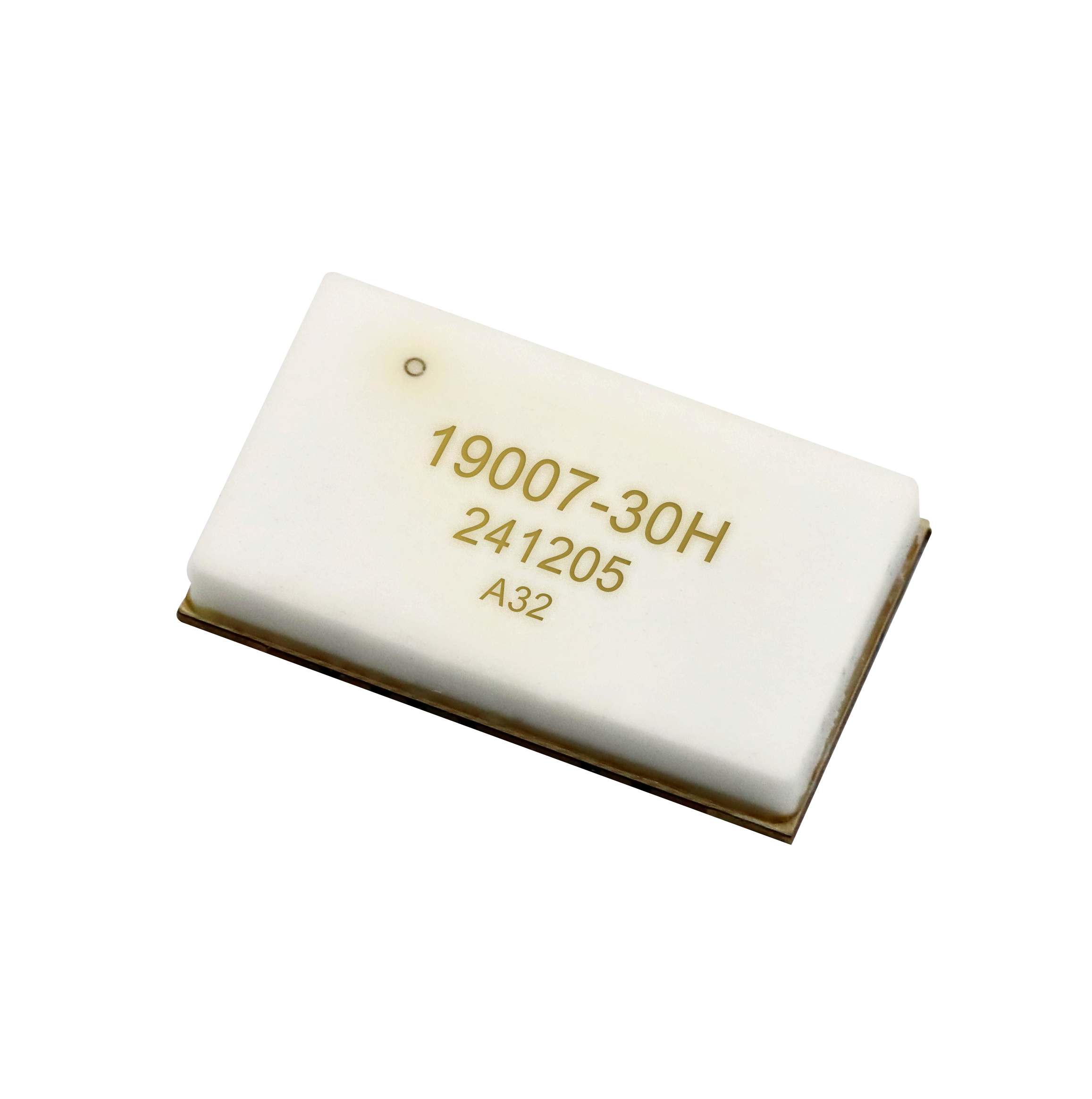

SDM19007-30H
설명
The SDM19007-30H is a fully integrated micro-strip GaN Hybrid power amplifier module designed for applications in 4G LTE MIMO systems, small cells and low power remote radio heads. The SDM19007-30H operates from 1930 to 1995 MHz and delivers a saturated power of 89.1 W. This amplifier is internally matched to 50 ohms over the entire operating frequency range and provides a drain voltage of 48V. The SDM19005-30H is available in a packaged ceramic surface mount package that measures 8x14x2.6mm.
View Product Specification
Massive MIMO
4G System
Multi-Band, Multi-Mode
Multi-Carrier
RRH Drive Amplifier
제품 사양
| Min Freq.(MHz) | 1930MHz |
|---|---|
| Max Freq.(MHz) | 1995MHz |
| Typ Output Power(W) | 3.16W |
| Saturation Power(W) | 89.1W |
| Power Gain(dB) | 40dB |
| Efficiency | 16% |
| VDC(V) | 48 |
| Package | PP-3G |
| Package Type | Surface Mount |
