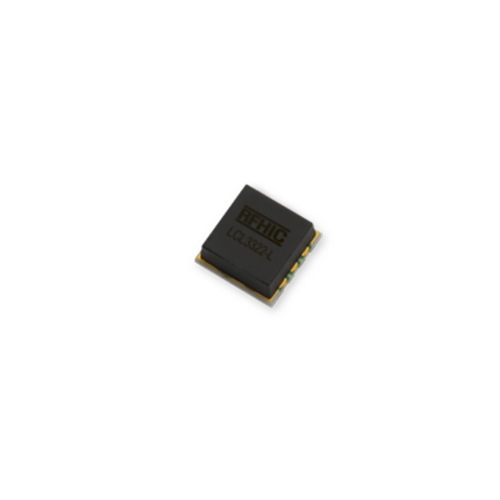

LCL3322-L

설명

RFHIC’s LCL3322-L is an LNA fabricated on RFHIC’s GaAs p-high-electron-mobility (HEMT) process. Covering 2700 to 3800 MHz, the LCL3322-L provides 21dB of gain and P1dB of 27dBm, while supporting a noise figure of 1.4dB and OIP3 levels of 39 dBm. The LCL3322-L is packaged in a hybrid surface mount and requires no matching circuit. This device has a high maximum input power of 18 dBm, and a single supply voltage of 5 V is required. The LCL3322-L’s high performance and handling ease make it ideal for WiMAX, LTE, and radar applications.
