RIK0930K-40TG
설명

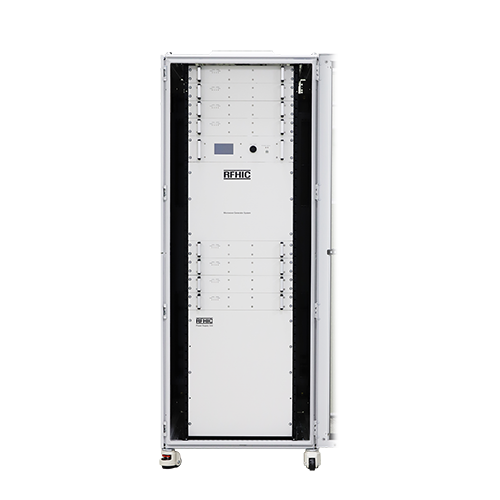

RFHIC’s RIK0930K-40TG is a 30 kW, 915MHz gallium-nitride on silicon carbide (GaN-on-SiC) solid-state microwave generator operating from 900 ~ 930 MHz. It has a system efficiency of 66% and can handle both CW and pulsed operations. The RIK0930K-40TG is an integrated type generator with eight SSPA shelves, a power supply unit (PSU), a main control unit (MCU), and a WR975 waveguide output port, all built into a single rack type unit.
View Product Specification
Microwave Heating
Microwave Drying
Plasma Generation
Magnetron Replacement
제품 사양
| Min Freq.(MHz) | 900MHz |
|---|---|
| Max Freq.(MHz) | 930MHz |
| Output Power(W) | 30000W |
| DC RF Efficiency(%) | 66% |
| VDC(V) | 50 |
| VAC(V) | 380~480 |
| Operating Mode | CW/Pulse |
| VSWR | 6:1 |
| Cooling | Water |
| Line Connection | 3P4W: (L1/L2/L5/N) |
| Dimension(mm) | 793(W) x 1017(D) x 1900(H) |
| Weight | 500kg |
| Interface | Ethernet, D-Sub 10 Pin, USB |
