RIF281K2-20S

GaN PA – RF 에너지
Sample Available for purchase
Contact
Sales Download Datasheet

설명

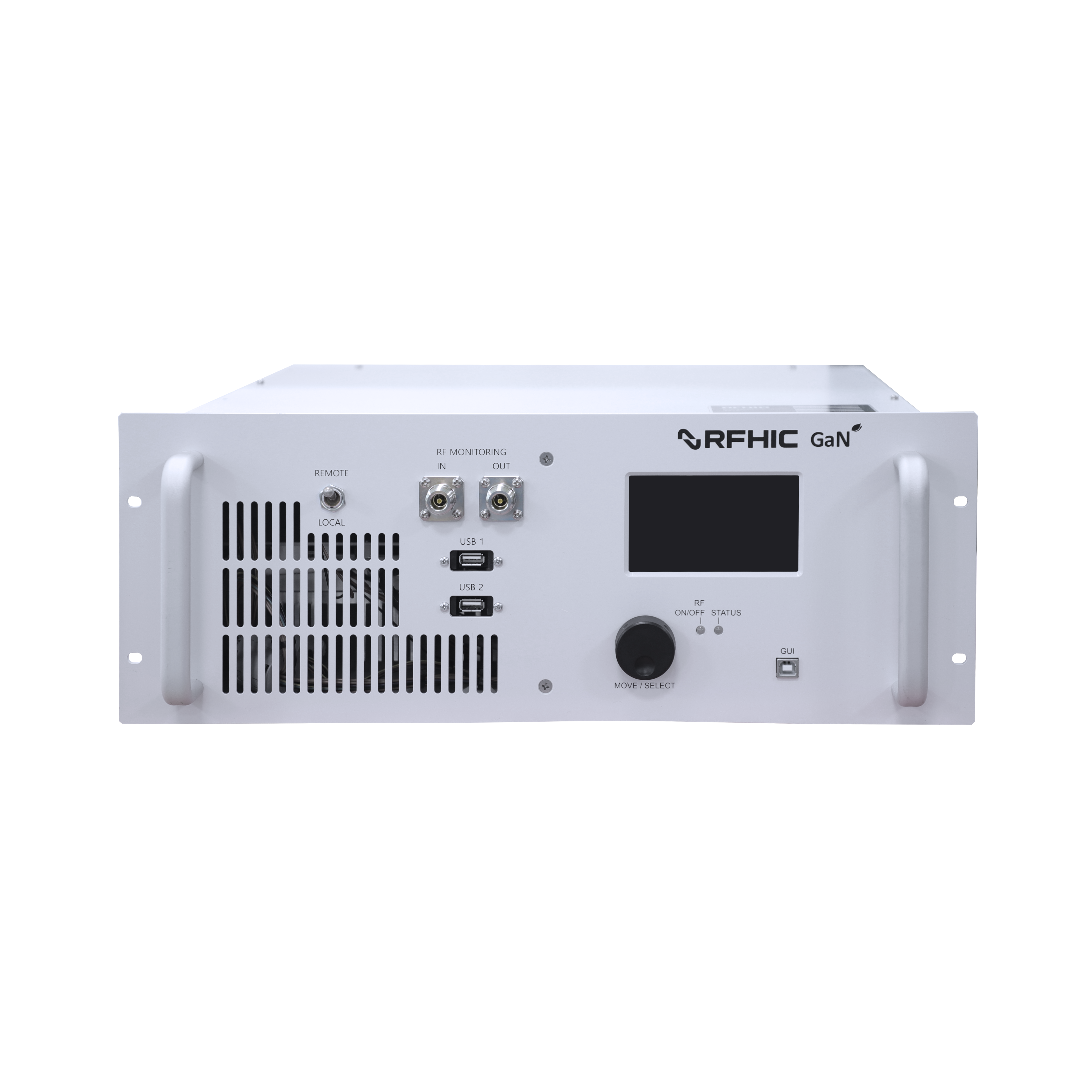

The RIF281K2-20S is a GaN solid-state Power Amplifier designed for accelerator application. The RIK281K2-20S delivering an output power ranging from 200 W to 1200 W. The power amplifier operates 2856 MHz. Provided with a Delta configuration, 1kW power supply unit and a DC cable.

View Product Specification

Datasheet
Accelerator

제품 사양

Min Freq.(MHz) 2851MHz
Max Freq.(MHz) 2861MHz
Output Power(W) 1203W
Power Gain(dB) 61dB
Efficiency 45%
VAC(V) 220
Package Type Shelf
Operating Mode Pulse RF
RF Input Connector N-Type
Cooling Air
Dimension(mm) 440(W) x 430(D) x 117(H)
Weight 8kg
