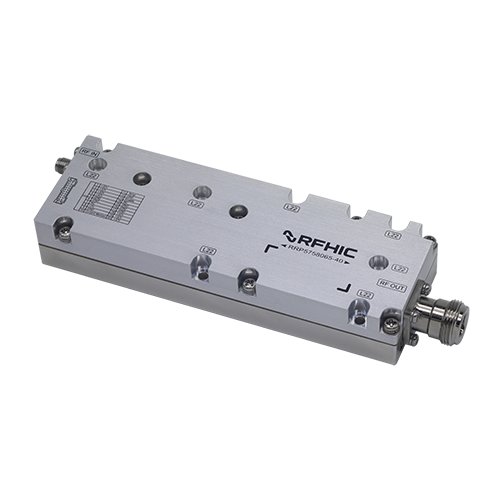

RRP5758065-40
설명
RFHIC’s RRP5758065-40- is an C-band, CW 65W, gallium-nitride (GaN) CW Power Amplifier Pallet designed for radar systems applications. Operating from 5725 to 5850 MHz, the RRP5758065-40 achieves 40dB of gain with an efficiency of 40%. RRP5758065-40 is designed using RFHIC’s gallium-nitride on silicon carbide (GaN-on-SiC) high-electron-mobility (HEMT) technology, resulting in higher breakdown voltage, wider bandwidth, and higher efficiency.
View Product Specification
Radar system
Drone system
Jamming system
제품 사양
| Band | C-band |
|---|---|
| Min Freq.(MHz) | 5725MHz |
| Max Freq.(MHz) | 5850MHz |
| Type | Pallet |
| Min Output Power | 65W |
| Typ Output Power(W) | 80W |
| Operating Mode | CW |
| Power Gain(dB) | 40dB |
| PAE(%) | 40% |
| VDC(V) | 32 |
| Dimension(mm) | 135(W) x 45(D) x 23(H) |
