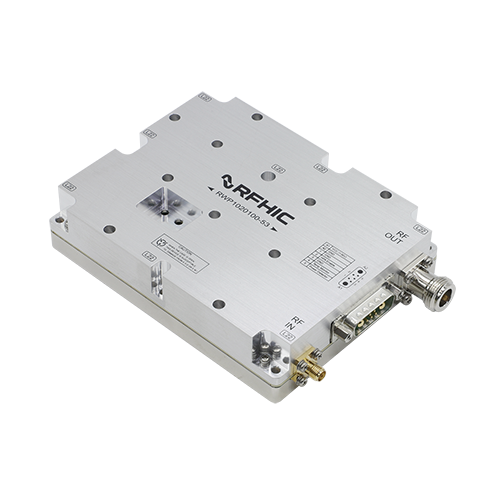

RWP1020100-53

GaN 광대역 증폭기
Production
Contact
Sales Download Datasheet

설명

RFHIC의 RWP1020100-53은 다양한 방위 응용 분야용으로 설계된 120W, 질화갈륨(GaN) 광대역 전력 증폭기입니다. 이 질화갈륨(GaN) 광대역 증폭기는 1,000~2,000MHz에서 작동하며 높은 신뢰성과 견고성을 제공합니다. RWP1020100-53은 RFHIC의 최첨단 GaN-on-SiC(실리콘 카바이드 기반 질화 갈륨) 트랜지스터를 사용하여 제조되어 업계 최고의 크기, 무게 및 전력(SWaP)을 제공합니다.

View Product Specification

Datasheet
Aerospace & Defense
Military Radars
Communications
EMI/RFHI
Electronic Warfare & Jamming

제품 사양

Min Freq.(MHz) 1000MHz
Max Freq.(MHz) 2000MHz
Type Pallet
Typ Output Power(W) 120W
Power Gain(dB) 53.8dB
Efficiency 43%
VDC(V) 36
