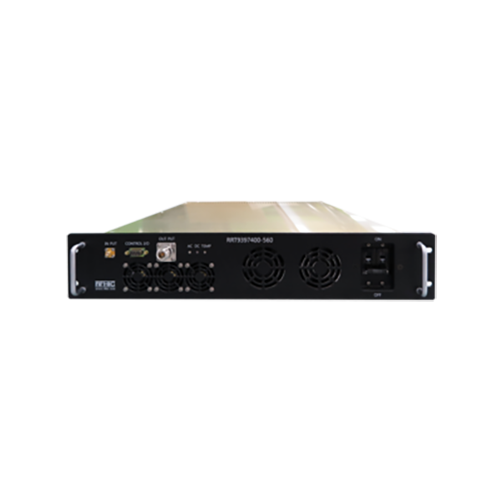

RRT9397400-560
설명
RFHIC’s RRT9397400-560 is a 400W, X-band Solid-State Transmitter designed for high-power and weather radar applications. The RRT9397400-560 provides a compact size of 19″(w) by 2U, allowing users to place it directly on the mast for easy integration. The transmitter is equipped with a detection alarm to prevent system damage.
View Product Specification
Weather Radar
Air Traffic Control Radar
Missile Tracking Radar
Surveillance Ground Radar
Meteorological Radar
제품 사양
| Band | X-band |
|---|---|
| Min Freq.(MHz) | 9300MHz |
| Max Freq.(MHz) | 9700MHz |
| Type | Shelf |
| Min Output Power | 400W |
| Operating Mode | Pulse |
| Power Gain(dB) | 56dB |
| VDC(V) | 50 |
| VAC(V) | 115 |
| Cooling | Air |
| Line Connection | 1Phase 3Wire |
| Dimension(mm) | 483 (W) x 500 (D) x 88 (H) |
| Weight | 20kg |
| Interface | LVDS (UART) / LVDS |
| Waveguide Output | SMA Female |
