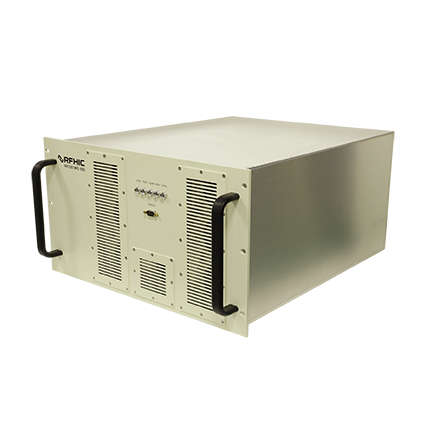

RRF29314K0-660
설명
RFHIC’s RRF29314K0-660 is a 4000W, S-band, GaN solid-state transmitter designed for high-power radar applications. The RRF29314K0-660 is designed with RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) HEMT, providing excellent thermal stability and high voltage breakdown. This solid-state transmitter allows upgrading the existing VED (Vaccum Electronic Device, such as Klystron, Magnetron, Travelling Wave Tube, and Cross Field Amplifier) based transmitter for radar applications.
View Product Specification
Weather Radar
Air Traffic Control Radar
Missile Tracking Radar
Surveillance Ground Radar
Meteorological Radar
제품 사양
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 2900MHz |
| Max Freq.(MHz) | 3100MHz |
| Type | Rack |
| Min Output Power | 4000W |
| Operating Mode | Pulse |
| Power Gain(dB) | 66dB |
| VAC(V) | 115VAC 1Phase 50/60Hz |
| Cooling | Air |
| Dimension(mm) | 482.6 X 265.9 X 590 (W x H x D, mm) |
Related Products
RRK545930K-440 ›
RFHIC’s RRK545930K-440 is a 30kW, C-band transmitter system operable from 5400 to 5900 MHz. The RRK545930K-440 is designed ideally for various radar ap...

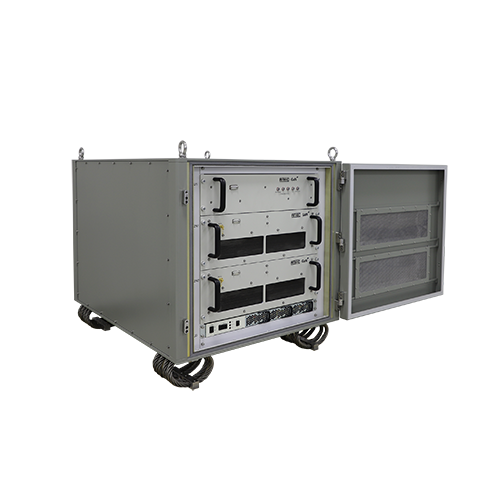

RRK54596K0-780 ›
