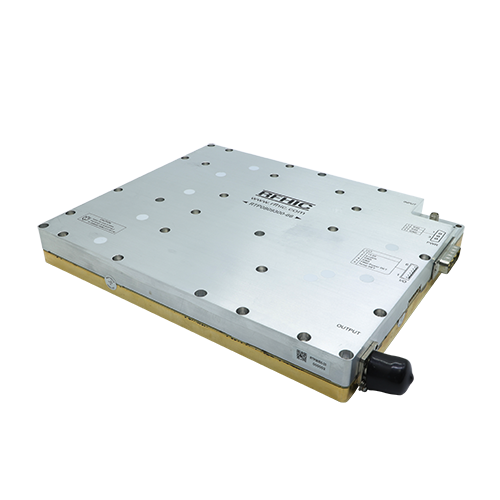

RWP0809300-55
설명
RFHIC’s RWP0809300-55 is a 300W, gallium-nitride (GaN) Wideband Power amplifier designed for microwave heating, microwave drying, and microwave plasma generation. This gallium-nitride (GaN) wideband amplifier operates from 800 to 900 MHz and offers high reliability and ruggedness. The RWP0809300-55 is fabricated using RFHIC’s state-of-the-art gallium-nitride-on silicon carbide (GaN-on-SiC) transistors, providing the industry’s best size, weight, and power (SWaP).
View Product Specification
Microwave Heating
Microwave Drying
Microwave Plasma
RF Sub-Systems
제품 사양
| Min Freq.(MHz) | 800MHz |
|---|---|
| Max Freq.(MHz) | 900MHz |
| Typ Output Power(W) | 300W |
| Power Gain(dB) | 55dB |
| PAE(%) | 35% |
| VDC(V) | 45 |
