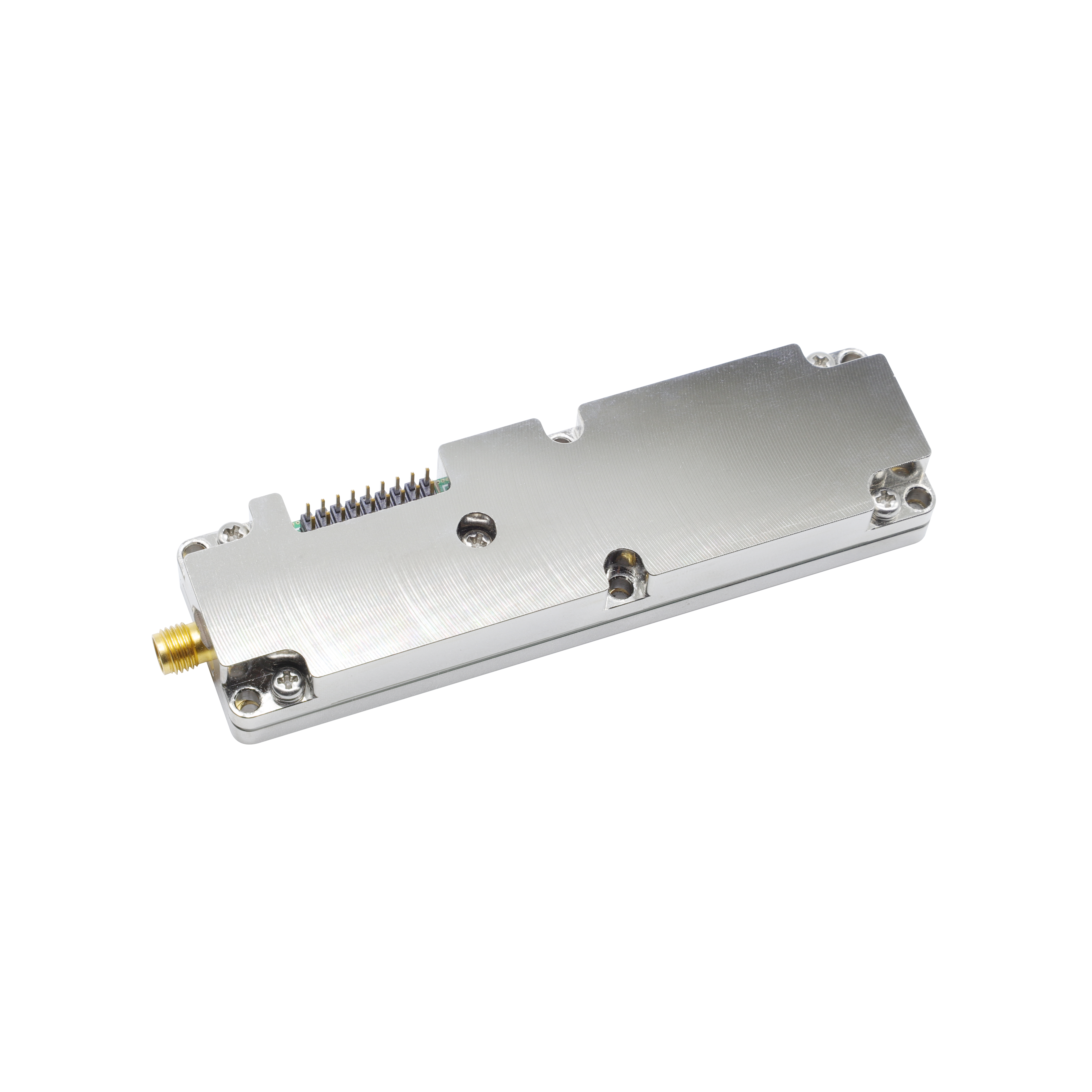

RRM5459020-M1A

설명

RFHIC’s RRM5459020-M1A is a C-band gallium nitride transmitter/receiver (GaN T/R) module designed for radar systems applications. Operating from 5.4 to 5.9 GHz, the RRM5459020-M1A achieves 20 W of output power with a TX gain of 40 dB. The RRM5459020-M1A has a built-in circulator that provides duplex functions and a built-in limiter diode to protect the receiver. The RRM5459020-M1A achieves a duty cycle of 10% and a pulse width of 50 us. Serial data, control the attenuator and 6-BIT phase shifter and bias sequencing is required.=The RRM5459020-M1A is fabricated on our cutting-edge gallium nitride (GaN) on silicon carbide (SiC) technology, resulting in higher power density, efficiency, wider bandwidth, and efficient thermal management.
