Medical Particle Accelerators: Enhancing Cancer Treatment with RFHIC’s GaN Solid-State Solutions

Particle accelerators play a pivotal role in modern medical applications, particularly in cancer treatment and diagnostics. These sophisticated machines generate high-energy particles that can be used to treat tumors or create detailed images of internal structures. As the demand for more precise and efficient medical treatments grows, the technology behind particle accelerators continues to evolve. RFHIC's gallium nitride (GaN) solid-state solutions are at the forefront of this evolution, offering significant advantages over traditional technologies.



Types of Medical Particle Accelerators

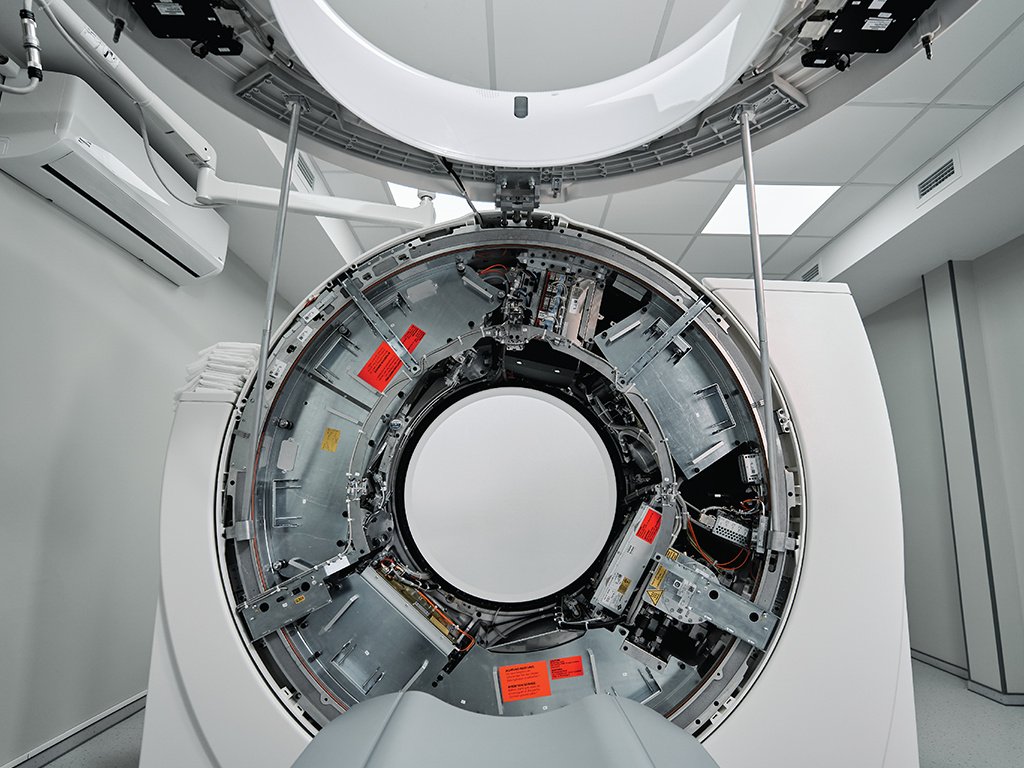

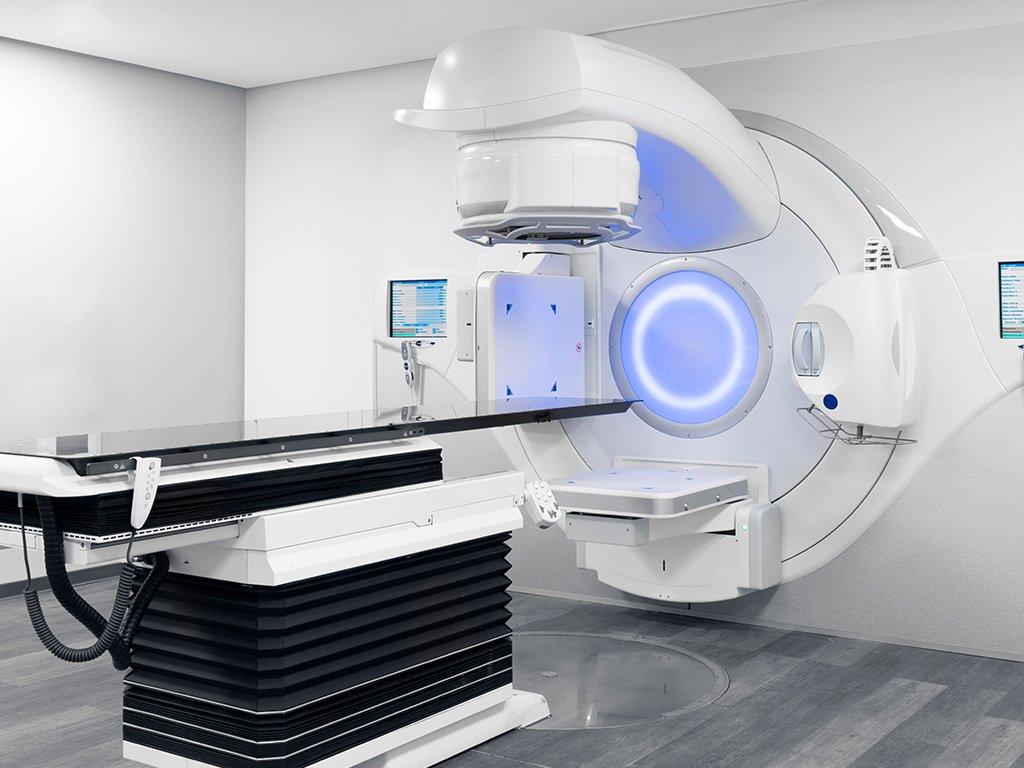

Linear Accelerators (Linacs)

Linear accelerators (Linacs) are the most used particle accelerators in medical applications, particularly for radiation therapy. Linacs accelerate electrons along a linear path to produce high-energy X-rays or electron beams. These beams are precisely targeted at cancerous tumors, destroying cancer cells while minimizing damage to surrounding healthy tissue.

• Applications: Linacs are widely used in external beam radiation therapy, including Intensity-Modulated Radiation Therapy (IMRT) and Stereotactic Body Radiotherapy (SBRT).
• Typical Frequency Range: Linacs typically operate in the S-band (2.4 to 3.0 GHz) and X-band (8 to 12 GHz) frequencies.
• Advantages: Linacs offer highly customizable treatment options, allowing oncologists to target tumors with great accuracy.

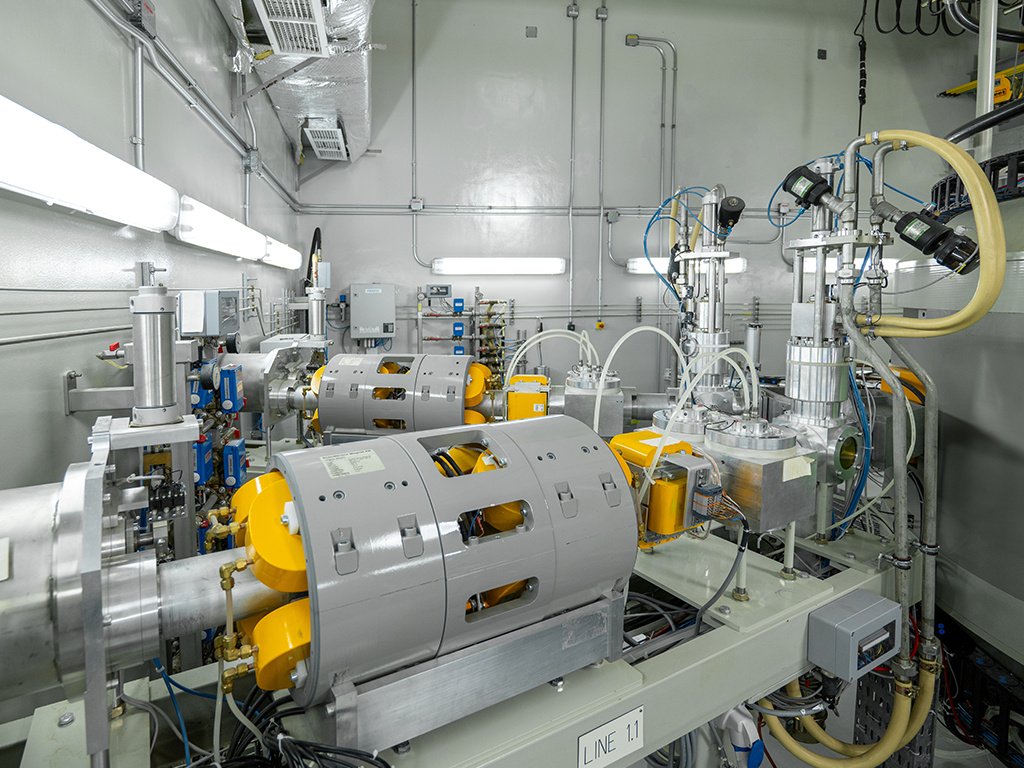

Cyclotrons

Cyclotrons are circular accelerators that propel charged particles, such as protons, in a spiral path. These particles are used to produce radioisotopes for medical imaging techniques like Positron Emission Tomography (PET) scans.

• Applications: Cyclotrons are essential for producing short-lived radioisotopes used in diagnostic imaging to detect and monitor various diseases, including cancer.
• Typical Frequency Range: Cyclotrons generally operate in the radio frequency (RF) range, particularly around 10 to 100 MHz.
• Advantages: Cyclotrons are highly efficient at generating the necessary isotopes for PET scans, enabling early and accurate diagnosis.



Synchrotrons

Synchrotrons are advanced particle accelerators that use magnetic fields to keep charged particles, such as protons or heavy ions, on a circular path while increasing their energy. Synchrotrons are employed in proton therapy and heavy-ion therapy, cutting-edge treatments for cancer.

• Applications: Synchrotrons are used in proton and heavy-ion therapies to treat tumors that are difficult to reach or resistant to conventional radiation therapy【56†source】.
• Typical Frequency Range: Typical Frequency Range: Cyclotrons generally operate in the radio frequency (RF) range, particularly around 10 to 100 MHz.
• Advantages: Synchrotrons allow for highly targeted radiation doses, minimizing damage to healthy tissues and reducing side effects.



Proton Accelerators

Proton accelerators are designed to generate protons for proton therapy, a form of radiation therapy that uses protons instead of X-rays. Proton therapy is known for its precision and ability to deliver high doses of radiation directly to tumors while sparing surrounding healthy tissues.

• Applications: Proton accelerators are used exclusively in proton therapy, particularly for treating pediatric cancers and tumors located near critical structures like the brain or spinal cord.
• Typical Frequency Range: Proton accelerators usually operate in the RF range, around 100 MHz to 200 MHz.
• Advantages: Proton therapy offers a lower risk of side effects compared to traditional radiation therapy, making it ideal for treating sensitive areas of the body【56†source】.

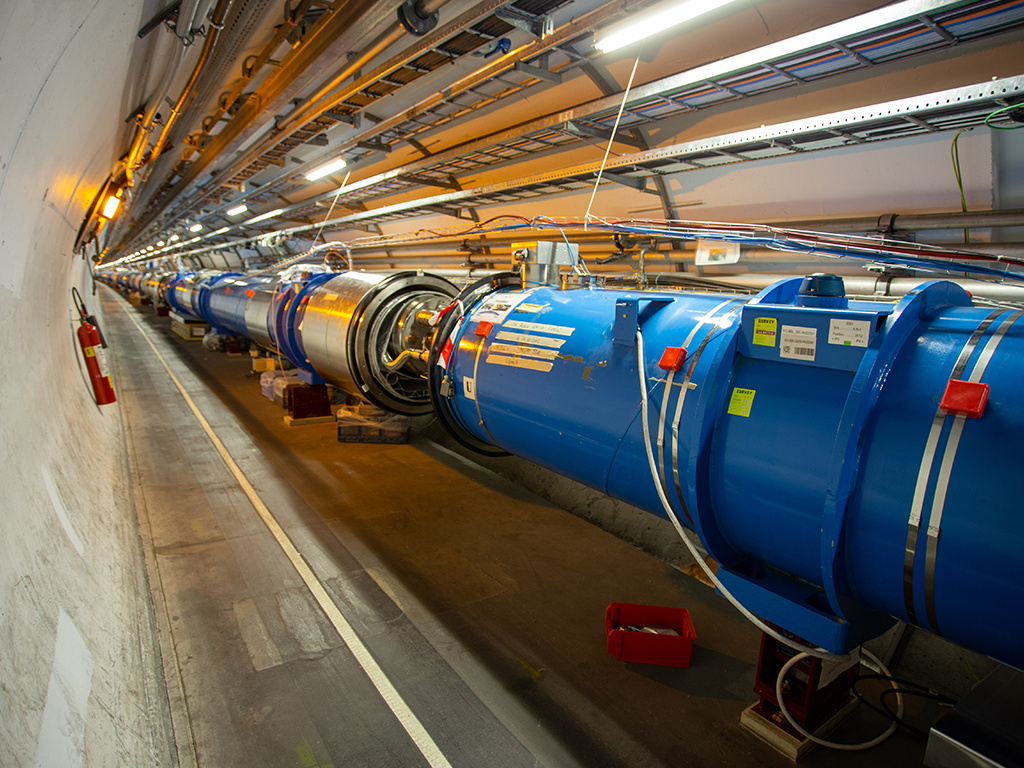

Heavy-Ion Accelerators

Heavy-ion accelerators are like proton accelerators but use heavier ions, such as carbon ions, for cancer treatment. Heavy-ion therapy is particularly effective against radio-resistant tumors and those located deep within the body【56†source】.

• Applications: Heavy-ion accelerators are used in heavy-ion therapy to treat tumors that are not responsive to other forms of radiation therapy.
• Typical Frequency Range: Heavy-ion accelerators operate in the RF range, typically from 100 MHz to 400 MHz.
• Advantages: Heavy-ion therapy delivers a more potent dose of radiation with greater precision, making it an excellent option for treating complex cancers.



The Role of RFHIC's GaN Solid-State Solutions in Medical Particle Accelerators

While particle accelerators have been transformative in medical applications, the underlying technology is continuously evolving. Traditional accelerators often rely on LDMOS or tube-based klystrons, which, although effective, come with limitations such as lower efficiency, larger size, and greater heat generation.



Advantages of RFHIC’s GaN Solid-State Technology

RFHIC's GaN solid-state technology offers several significant advantages over conventional LDMOS and tube-based technologies:

Higher Efficiency: GaN technology provides superior efficiency compared to LDMOS and klystrons, converting more energy into the desired high-frequency signals and reducing power consumption and operating costs【55†source】.

Compact Design: GaN solid-state devices generate less heat, allowing for smaller and more compact accelerator designs. This compactness is particularly valuable in medical environments, where space is often at a premium【58†source】.

Fast Start-Up Times: GaN technology offers rapid start-up times, enabling accelerators to reach operational levels more quickly, which is crucial in medical settings where time is of the essence【58†source】.

Increased Reliability: GaN devices have a longer operational lifespan and require less maintenance than traditional tube-based technologies, reducing downtime and ensuring consistent, high-quality performance in medical applications【58†sbource】.

Precise Energy Control: The ability to finely control the energy output of GaN-based systems enhances the precision of medical particle accelerators. This precision is critical in treatments like proton and heavy-ion therapy, where targeting accuracy can significantly impact patient outcomes【57†source】.



RFHIC’s GaN Solid-State Solutions for Particle Accelerator Applications

No.	Category	Frequency Min (MHz)	Frequency Max (MHz)	Output Power (W/kW)	Voltage (V)	Efficiency (%)	Power Gain (dB)
ID001K5DD-F	Transistor	1	400	1200	60	75	23
ID001K5DD-P	Transistor	1	400	1200	60	75	23
ID001K5DD-NP	Transistor	1	400	12011000	60	75	23
IE051K2DC	Transistor	495	505	605	50	74.7	18.8
IE05600DC	Transistor	499	501	550	50	76.4	19.1
IE13550D	Transistor	1295	1305	300	50	79.2	14.9
IE30330PC	Transistor	2800	3100	50	50	63	11
IE6305040V	Transistor	5725	5875	1 kW	40	55	13.7
RIM051K0-20	Amplifier	589	593	2 kW	N/A	68	N/A
RIM132K0-20	Amplifier	1295	1305	1 kW	N/A	65	N/A
RIM151K0-20	Amplifier	1496	1502		N/A	62	N/A
RIU00273K0-20TG	Microwave Generator	25.8	28.5
RIK1330K-40TG	Microwave Generator	1295	1305	30 kW	N/A	50	N/A
RIK154K0-40T	Microwave Generator	1496	1502	4 kw	N/A	53	N/A





Conclusion

Medical particle accelerators have become vital tools in diagnosing and treating cancer. From linear accelerators to heavy-ion accelerators, each type of accelerator offers unique benefits that cater to specific medical needs. As the demand for more effective and efficient cancer treatments grows, so does the need for advanced technologies that can enhance the performance of these critical devices.

RFHIC's GaN solid-state microwave solutions are at the forefront of this evolution, offering significant advantages over traditional LDMOS and tube-based klystron technologies. With higher efficiency, compact design, fast start-up times, increased reliability, and precise energy control, RFHIC's GaN solutions are revolutionizing the field of medical particle accelerators. These innovations not only improve the quality and effectiveness of cancer treatments but also contribute to better patient outcomes, advancing the field of medical science.
