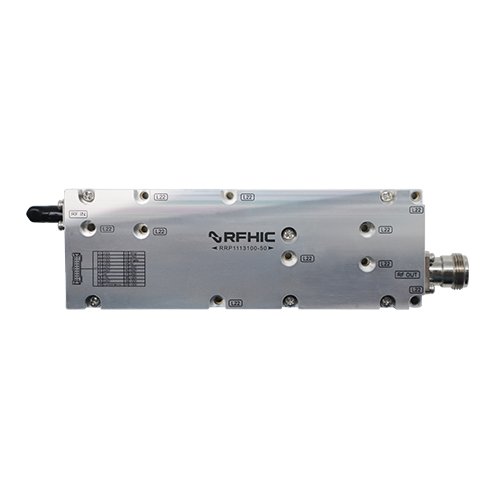

RRP1113100-50
Description
RFHIC’s RRP1113100-50- is a L-band, 100W, gallium-nitride (GaN) CW Power Amplifier Pallet designed for radar systems applications. Operating from 1164 to 1300 MHz, the RRP1113100-50 achieves 50dB of gain with an efficiency of 45%. 1113100-50 is designed using RFHIC’s gallium-nitride on silicon carbide (GaN-on-SiC) high-electron-mobility (HEMT) technology, resulting in higher breakdown voltage, wider bandwidth, and higher efficiency.
View Product Specification
Radar system
Drone system
Jamming system
Specification
| Band | L-Band |
|---|---|
| Min Freq.(MHz) | 1164MHz |
| Max Freq.(MHz) | 1300MHz |
| Type | Pallet |
| Min Output Power | 100W |
| Operating Mode | CW |
| Power Gain(dB) | 50dB |
| PAE(%) | 45% |
| VDC(V) | 32 |
| Dimension(mm) | 147 X 49.5 X 23 |
