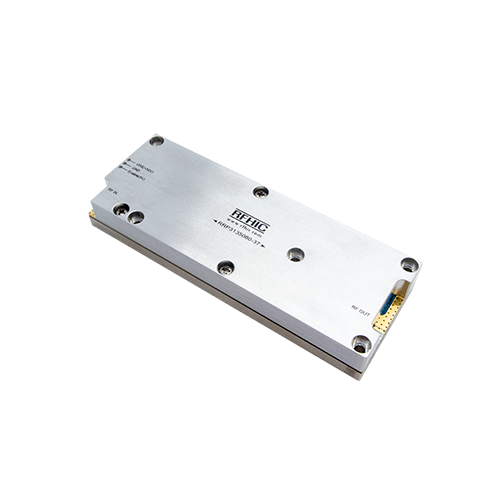

RRP3135080-37
Description
RFHIC’s RRP3135080-37 is an S-band, 90W, gallium-nitride (GaN) Power Amplifier designed for radar systems applications. Operating from 3100 to 3500 MHz, the RRP3135080-37 achieves 37dB of gain with an efficiency of 40%. The RRP3135080-37 is designed using RFHIC’s gallium-nitride on silicon carbide (GaN-on-SiC) high-electron-mobility (HEMT) technology, resulting in higher breakdown voltage, wider bandwidth, and higher efficiency. The RRP3135080-37 achieves a duty of 20% and a pulse width of 500 us. Both RF ports have integrated DC-blocking capacitors and are fully matched to 50 Ohms.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 3100MHz |
| Max Freq.(MHz) | 3500MHz |
| Type | Pallet |
| Typ Output Power(W) | 90W |
| Power Gain(dB) | 37dB |
| PAE(%) | 40% |
| VDC(V) | 50 |
