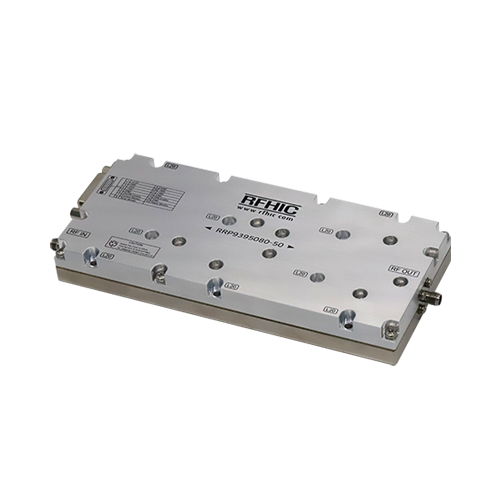

RRP9395080-50
Description
RFHIC’s RRP9395080-50 is a 90W, X-band, GaN solid-state power amplifier designed for radar, satellite, and space applications. The RRP9395080-50 provides a minimum continuous wave (CW) output power of 90W, operable from 9300 to 9500 MHz.The RRP9395080-50 is designed with RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) HEMT, providing excellent thermal stability and a high breakdown voltage and efficiency. The RRP9395080-50 is fully matched to 50 Ohms, simplifying system integration. The compact amplifier weighs 0.6 kg and requires an external heat sink for cooling.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | X-band |
|---|---|
| Min Freq.(MHz) | 9300MHz |
| Max Freq.(MHz) | 9500MHz |
| Type | Pallet |
| Typ Output Power(W) | 90W |
| Power Gain(dB) | 50dB |
| PAE(%) | 25% |
| VDC(V) | 40 |
Related Products
RRP9397400-56A ›
RFHIC’s RRP9397400-56A is a 400W, X-band, Pulse gallium-nitride (GaN) solid-state power amplifier designed for naval, surveillance, air traffic control, and ...

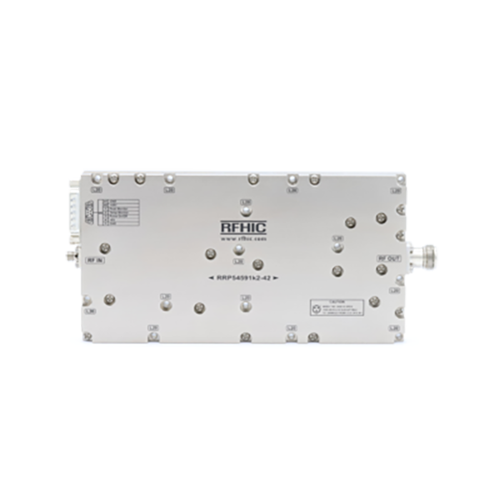

RRP54591K2-42 ›
