H004
Description

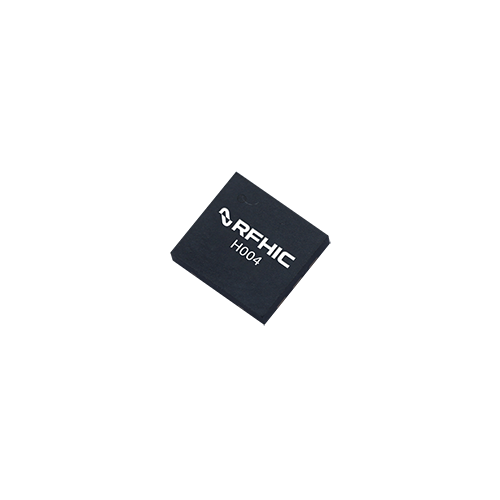

RFHIC’s H004 is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 0 to 6000 MHz.The H004 delivers 28 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.
View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier
Specification
| Max Freq.(MHz) | 6000MHz |
|---|---|
| Typ Output Power(W) | 6.3W |
| Saturation Power(W) | 28W |
| Power Gain(dB) | 18.7dB |
| Efficiency | 32% |
| VDC(V) | 48 |
| Package | DFN66726L-Q2 |
| Package Type | Surface Mount |
