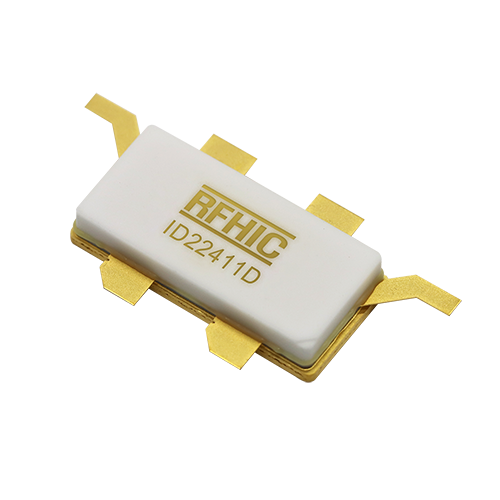

ID22411D
Description
RFHIC’s ID22411D is a discrete gallium nitride on silicon carbide (GaN-on-SiC) high-electron-mobility transistor (HEMT) which operates from 2110 to 2200 MHz. The ID22411D delivers 410 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is internally matched and is ideally suited for 4G LTE, and 5G NR systems.
View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency, Doherty Amplifier
Specification
| Min Freq.(MHz) | 2110MHz |
|---|---|
| Max Freq.(MHz) | 2200MHz |
| Typ Output Power(W) | 54W |
| Saturation Power(W) | 410W |
| Power Gain(dB) | 17.5dB |
| VDC(V) | 48 |
| Package | RF24008DKR3 |
| Package Type | Flange |
| Drain Efficiency(%) | 51% |
