Wireless Infrastructure
Meeting the continually evolving demands for 4G LTE & 5G wireless infrastructure applications with RFHIC's gallium nitride (GaN) on silicon carbide (SiC) technology solutions
H020C13D
Description

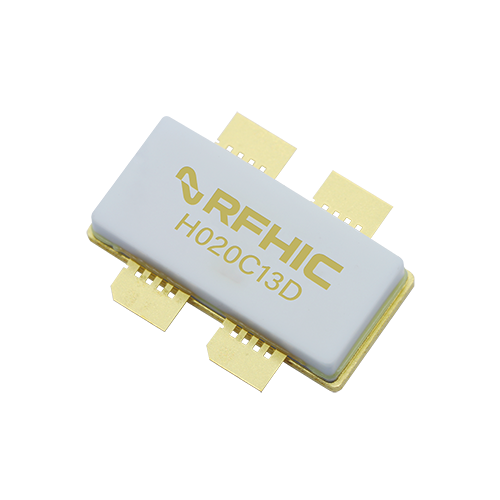

RFHIC’s H020C13D is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 2110 to 2170 MHz.The H020C13D delivers 468 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.
View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier
Specification
| Min Freq.(MHz) | 2110MHz |
|---|---|
| Max Freq.(MHz) | 2170MHz |
| Typ Output Power(W) | 79W |
| Saturation Power(W) | 468W |
| Power Gain(dB) | 14.7dB |
| Efficiency | 54% |
| VDC(V) | 48 |
| Package | RF24010DKR3 |
| Package Type | Flange |
