RT12055P
Description
RFHIC’s RT12055P is a discrete gallium nitride on silicon carbide (GaN-on-SiC) high-electron-mobility transistor (HEMT) which operates from 0 to 6000 MHz. The RT12055P delivers 60 W of saturated power at 48V. The device is a single-stage internally matched power amplifier transistor packaged in our NS-CS01 ceramic package. The RT12055P can be used in Doherty architecture for the final stage of a base station power amplifier for WiMAX, LTE, and GSM systems.
View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier
Specification
| Max Freq.(MHz) | 6000MHz |
|---|---|
| Typ Output Power(W) | 13W |
| Saturation Power(W) | 60W |
| Power Gain(dB) | 16dB |
| Efficiency | 34% |
| VDC(V) | 48 |
| Package | NS-CS01 |
| Package Type | Flange |
Related Products
RT12028P ›
RFHIC’s RT12028P is a discrete gallium nitride on silicon carbide (GaN-on-SiC) high-electron-mobility transistor (HEMT) which operates from 0 to 6000 M...
RT12055P ›
RFHIC’s RT12055P is a discrete gallium nitride on silicon carbide (GaN-on-SiC) high-electron-mobility transistor (HEMT) which operates from 0 to 6000 M...

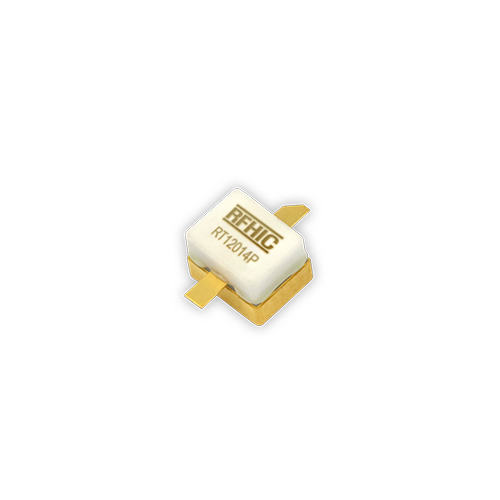

RT12014P ›
