H027C11A

Transistors - Wireless Infrastructure
Production
Contact
Sales

Description

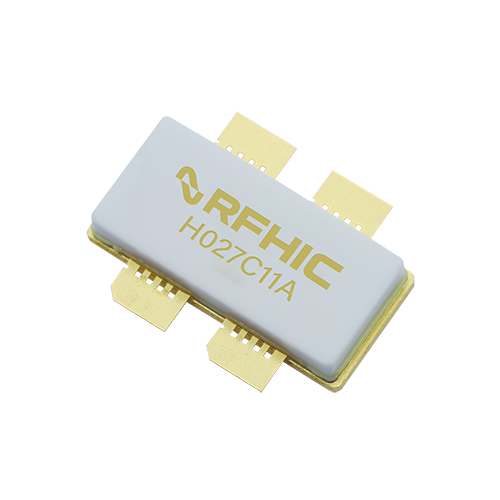

RFHIC’s H027C11A is a discrete gallium-nitride gallium-nitride (GaN) on silicon carbide (SiC) high-electron-mobility transistor (HEMT) which operates from 758 to 960 MHz.The H027C11A delivers 630 W of saturated power at 48V and is designed to provide higher efficiency and linearity. The device is ideally suited for WiMAX, LTE, WCDMA and GSM systems.

View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier

Specification

Min Freq.(MHz) 758MHz
Max Freq.(MHz) 960MHz
Typ Output Power(W) 107W
Saturation Power(W) 630W
Power Gain(dB) 17dB
Efficiency 57%
VDC(V) 48
Package RF24010DKR3
Package Type Flange
