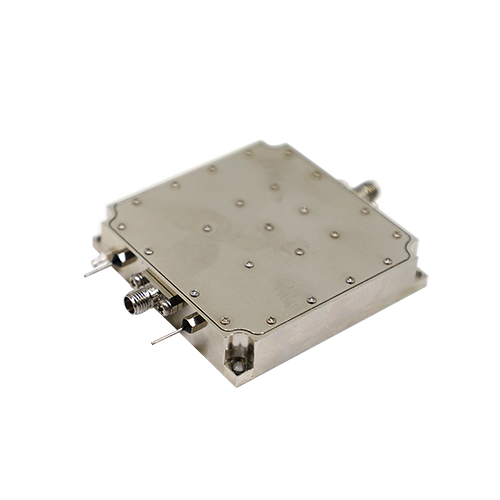

RRM851A90-36C
Description
RFHIC’s RRM851A90-36C is a 100W, C-band, gan solid-state power amplifier designed for weather and marine radar, point-to-point, or multipoint radios applications at 8.5~9.5GHz. RRM851A90-36C typically provides 43dB of small signal gain and 50.2dBm of saturated output power, 33% of efficiency.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | X-band |
|---|---|
| Min Freq.(MHz) | 8500MHz |
| Max Freq.(MHz) | 9500MHz |
| Type | Module |
| Typ Output Power(W) | 100W |
| Power Gain(dB) | 43dB |
| PAE(%) | 33% |
| VDC(V) | 50 |
Related Products

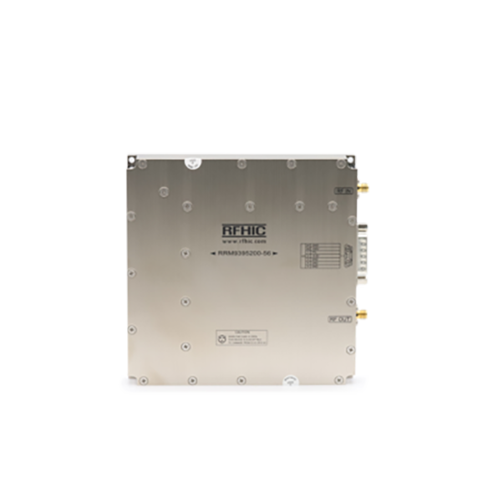

RRM9395200-56A ›
RFHIC’s RRM9395200-56 is a 200 W gallium-nitride (GaN) module amplifier designed for radar systems applications. Operating from 9300 to 9500 MHz, the R...

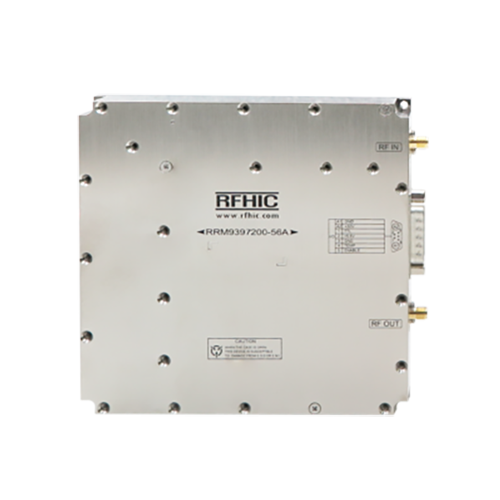

RRM9397200-56A ›
RFHIC’s RRM9397200-56A is a 200W, gallium-nitride (GaN) Pulse Amplifier Module designed ideally for weather and maritime radar applications. Operable a...

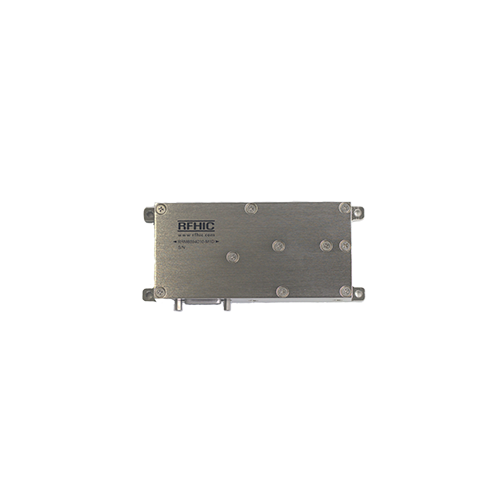

RRM8894010-M1D ›
RFHIC’s RRM8894010-MID is a 10W, X-band gallium nitride (GaN) transmit and receive Module designed ideally for next-generation active electronically sc...

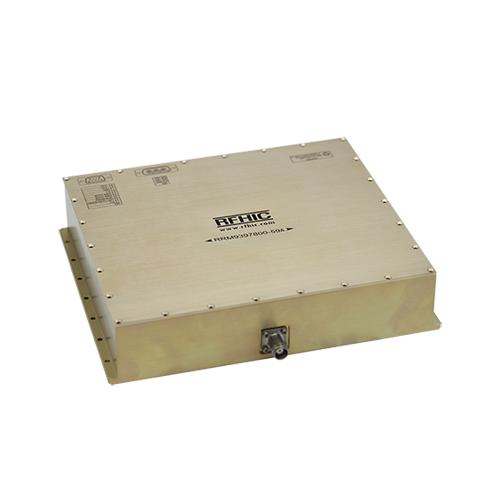

RRM9397800-59A ›
