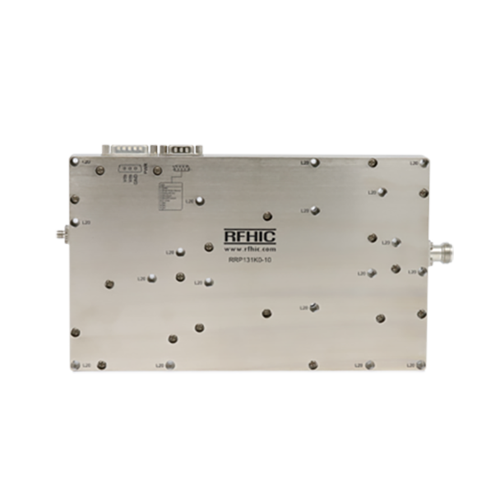

RRP131K0-10
Description
RFHIC’s RRP131K0-10 is a 1200 W, L-band gallium-nitride (GaN) module amplifier designed for radar systems applications. Operating from 1200 to 1400 MHz, the RRP131K0-10 achieves 54 dB of gain with an efficiency of 50%. The RRP131K0-10 utilizes our in-house gallium-nitride-on silicon carbide (GaN-on-SiC) technology, resulting in higher breakdown voltage, wider bandwidth, and higher efficiency. Both RF ports have integrated DC-blocking capacitors and are fully matched to 50 Ohms.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | L-band |
|---|---|
| Min Freq.(MHz) | 1200MHz |
| Max Freq.(MHz) | 1400MHz |
| Type | Module |
| Typ Output Power(W) | 1200W |
| Power Gain(dB) | 54dB |
| PAE(%) | 50% |
| VDC(V) | 50 |
Related Products

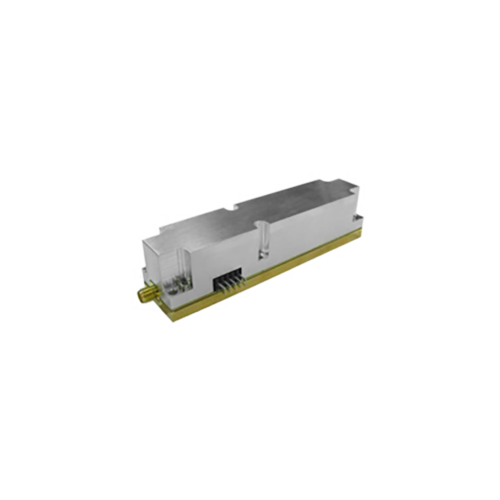

RRP03250-10 ›
RFHIC’s RRP03250-10 is a 300 W gallium-nitride (GaN) module amplifier designed for radar systems applications. Operating from 135 to 460 MHz, the RRP03...
RRP07093K0-30 ›
RFHIC’s RRP07093K0-30 is a 4kW, pulsed GaN solid-state power amplifier designed for various radar applications, including military and weather radar. T...

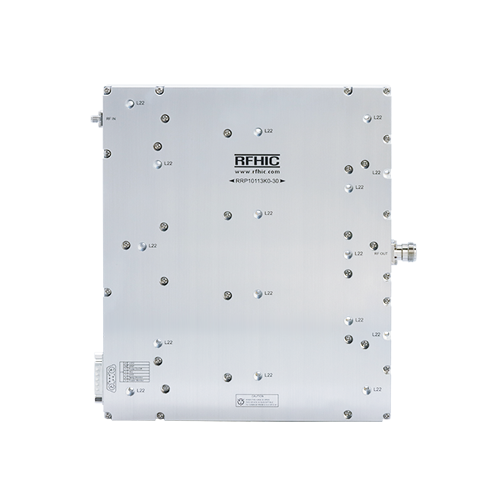

RRP10113K0-30 ›
