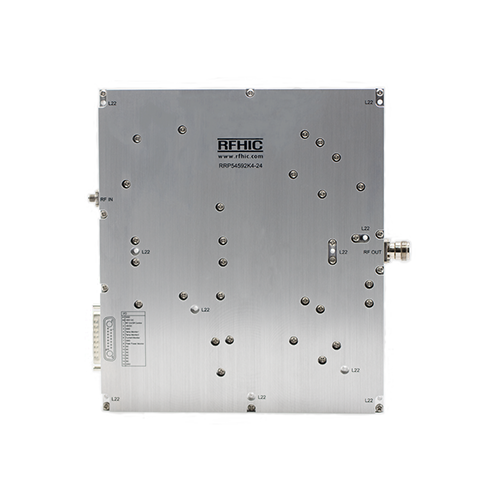

RRP54592K4-24
Description
RFHIC’s RRP54592K4-24 is a 2400w, C-band, solid-state pulse pallet amp fabricated with RFHIC’s cutting GaN on SiC HEMT technology. The RRP54592K4-24 is designed ideally for various radar applications. The RRP54592K4-24 provides an operating bandwidth of 500 MHz from 5400 MHz to 5900 MHz, with a typical power gain of 23.8 dB.
View Product Specification
Weather Radar
Air Traffic Control Radar
Surveillance Ground Radar
Meteorological Radar
Early Detection Radar
Specification
| Band | C-band |
|---|---|
| Min Freq.(MHz) | 5400MHz |
| Max Freq.(MHz) | 5900MHz |
| Type | Pallet |
| Typ Output Power(W) | 2400W |
| Power Gain(dB) | 24dB |
| PAE(%) | 30% |
| VDC(V) | 50 |
