RRM9397800-59A
Description

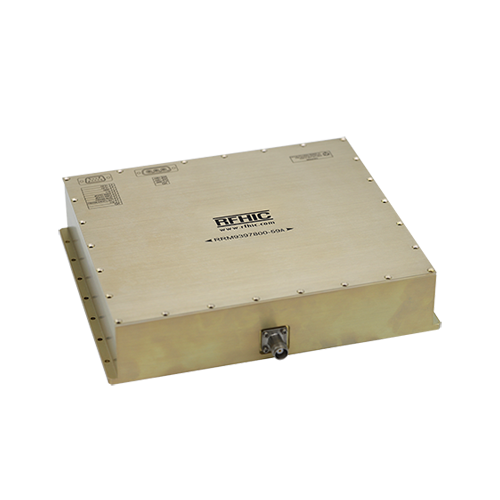

The RRM9397800-59A is an 800W, pulsed GaN solid-state power amplifier operable at X-band. The RRM9397800-59A is fabricated with RFHIC’s state-of-the-art gallium nitride (GaN) technology providing excellent efficiency and high breakdown voltage. The RRM9397800-59A provides a power gain of 59dB with a power-added efficiency of 20%. The RRM9397800-59A are cost-effective replacements for traveling wave tube (TWT) amplifiers and offer longer life, better efficiencies, and reduced size and weight than their TWT counterparts.RFHIC’s GaN-based pulsed power amplifiers can be used in numerous military and high-end commercial applications, including radar, communication transmitters, and jamming systems.
View Product Specification
Weather Radar
Ocean Surveillance Radar
Ground Surveillance Radar
SAR
Transmitter Systems
Specification
| Band | X-Band |
|---|---|
| Min Freq.(MHz) | 9300MHz |
| Max Freq.(MHz) | 9700MHz |
| Type | Module |
| Typ Output Power(W) | 800W |
| Power Gain(dB) | 59dB |
| PAE(%) | 20% |
Related Products
RRM9395200-56A ›
RFHIC’s RRM9395200-56 is a 200 W gallium-nitride (GaN) module amplifier designed for radar systems applications. Operating from 9300 to 9500 MHz, the R...

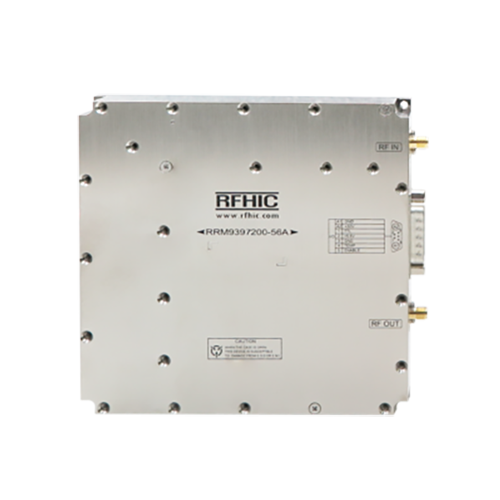

RRM9397200-56A ›
RFHIC’s RRM9397200-56A is a 200W, gallium-nitride (GaN) Pulse Amplifier Module designed ideally for weather and maritime radar applications. Operable a...

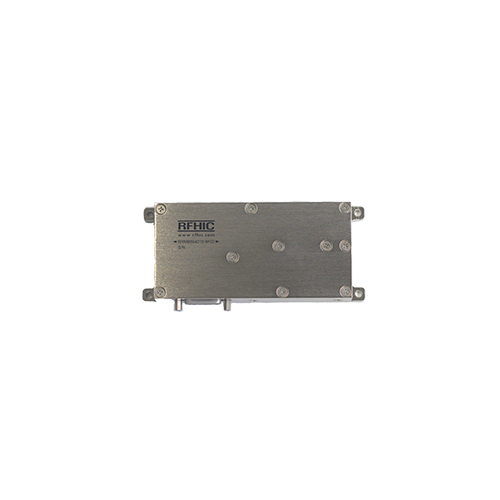

RRM8894010-M1D ›
