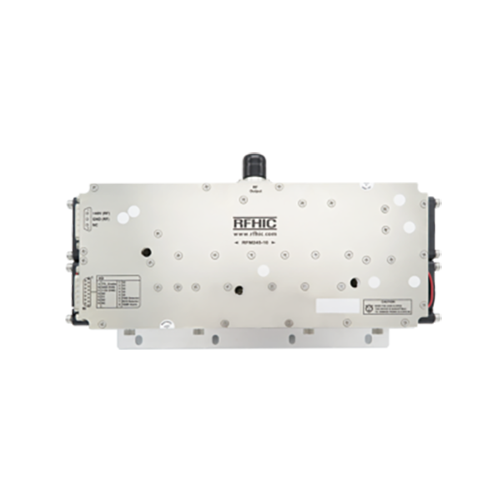

RFM245-10
Description
RFHIC’s RFM245-10 is a 100W, gallium-nitride solid-state power amplifier (GaN SSPA) and generator ideally designed for medical equipment applications. It has a drain efficiency of 37% and is capable of continuous wave and pulsed operations. This device is equipped with a signal attenuator and is fully matched to 50 ohms.
View Product Specification
Microwave Heating
Microwave Drying
Plasma Generation
Specification
| Min Freq.(MHz) | 2400MHz |
|---|---|
| Max Freq.(MHz) | 2500MHz |
| Output Power(W) | 100W |
| Efficiency | 37% |
| VDC(V) | 50 |
| Operating Mode | CW/Pulsed |
| Cooling | Air |
Related Products

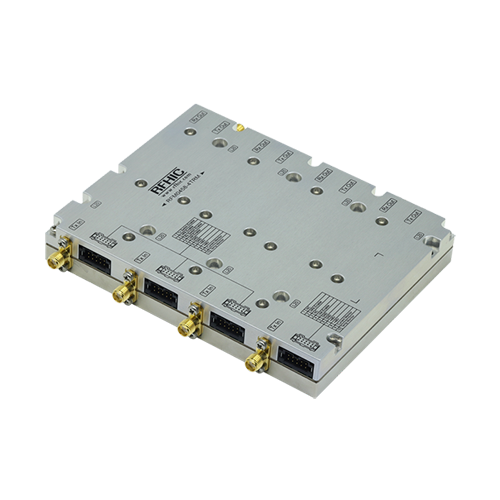

RFM0458-4TRM-020 ›
RFHIC’s RFM0458-4TRM-020 is a 12~25W, L/S/C-band, 4-Channel Module Amplifier designed for radar and communication. Due to its 4-Channel design, the ope...

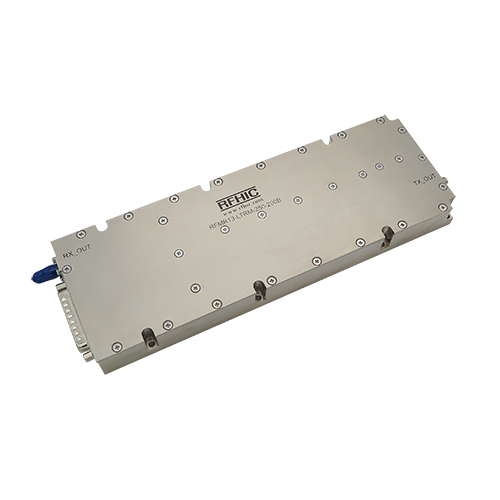

RFMR13-LTRM-250-200B ›
