RIM132K0-20
Description

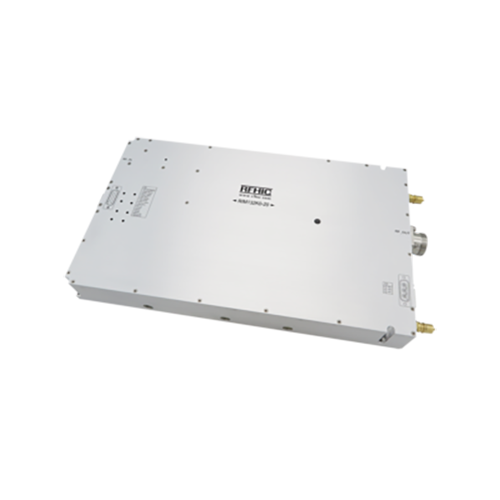

RFHIC’s RIM132K0-20 is a 2kW gallium-nitride solid-state power amplifier (GaN SSPA) designed for industrial, scientific, and medical applications operating at 1295 to 1305 MHz. The RIM132K0-20 is built with RFHIC’s state-of-the-art GaN-on-SiC high-electron-mobility transistors (HEMT). The solid-state amplifier gives users 65% drain efficiency, operating from a 50V DC supply. The RIM132K0-20 is fully matched and provides excellent thermal stability. An ideal replacement for legacy tube-based systems, offering better reliability and longer lifetimes.
View Product Specification
Microwave Heating
Microwave Drying
Plasma Generation
Linear Accelerator
Specification
| Min Freq.(MHz) | 1295MHz |
|---|---|
| Max Freq.(MHz) | 1305MHz |
| Output Power(W) | 2000W |
| Efficiency | 65% |
| VDC(V) | 49 |
| RF Input Connector | SMA, Female |
| RF Output Connector | 7/16 DIN, Female |
| Cooling | Water |
Related Products
RIM09800-20 ›
RFHIC’s RIM09800-20 is an 800W, gallium-nitride solid-state power amplifier (GaN SSPA) designed ideally as the building block for high-power microwave ...
RIM091K1-20 ›

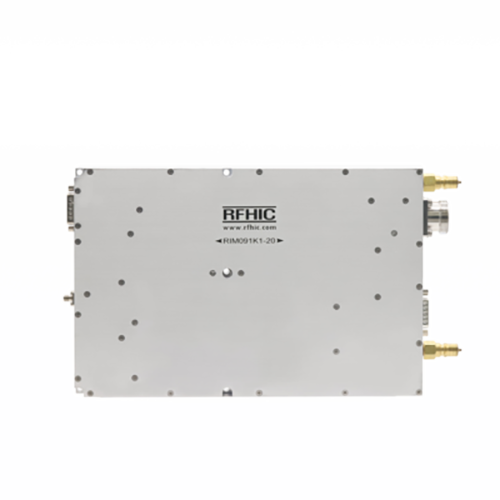

RFHIC’s RIM091K1-20 is a 1.1kW, gallium nitride solid-state power amplifier (GaN SSPA) operable from 900-930 MHz. It has a drain efficiency of 63% and ...
RIM091K5-20 ›

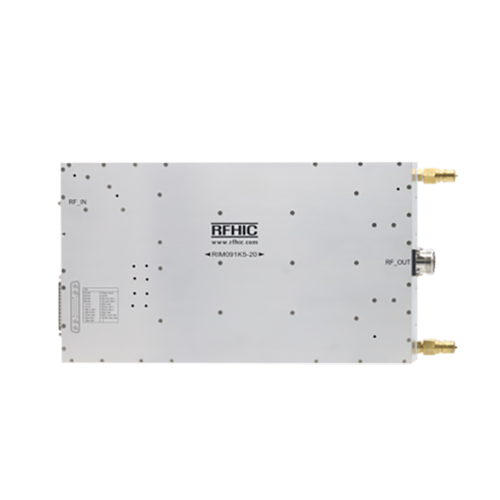

RFHIC’s RIM091K5-20 is a 1.5kW, gallium nitride solid-state power amplifier (GaN SSPA) operable from 900-930 MHz. It has a drain efficiency of 63% and ...
