RWP1516100-57

Wideband Amplifiers
Sample Available for purchase
Contact
Sales Download Datasheet

Description

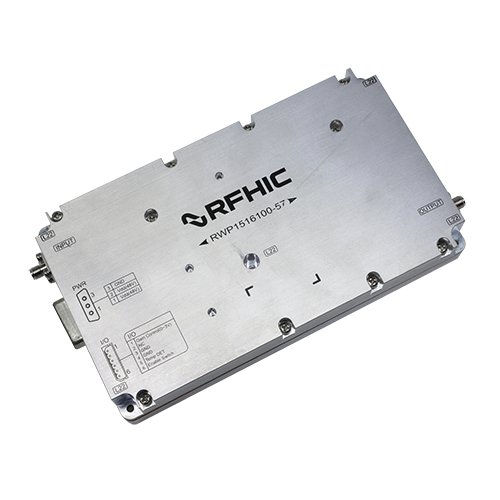

The power amplifier module is designed for Broadcasting, Telecommunication, Medical and Other markets. Operating frequency range is from 1000 ~ 2000MHz. Gallium Nitride on SiC technology is used and attached on an aluminum sub carrier. Full in/out matching for broadband performance is already applied. Improved thermal handling by patented technology.

View Product Specification

Datasheet
Aerospace & Defense
Military
Electronic Warfare
Rader
SATCOM
Communication
EMI/RFI
Jamming

Specification

Min Freq.(MHz) 1000MHz
Max Freq.(MHz) 2000MHz
Typ Output Power(W) 100W
Power Gain(dB) 50dB
Efficiency 50%
