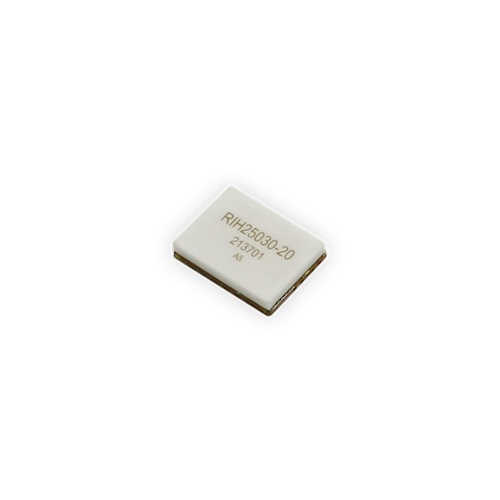

RIH25030-20
Description
The RIH25030-20 is a GaN Hybrid power amplifier module designed for Industrial, Scientific, Medical (ISM), and Jamming applications at 2450MHz. RIH Series is suitable for use in CW, pulse, and Linear applications. The 50ohm input and output impedance matched device can deliver up to 30W of saturation power and operating drain voltage 45V. Custom development is available upon request.
View Product Specification
Microwave Heating
Microwave Drying
Medical Heating
Hyperthermia
Anti-drone system
Jamming System
Specification
| Min Freq.(MHz) | 2400MHz |
|---|---|
| Max Freq.(MHz) | 2500MHz |
| Power Gain(dB) | 16dB |
| Efficiency | 70% |
| VDC(V) | 45 |
| Package Type | Surface Mount |
Related Products
HM0225-05A ›
RFHIC’s HM0225-05A is a gallium-nitride (GaN) hybrid power amplifier ideally suited for defense electronic warfare jammer applications. Covering from 2...
HM0225-05B ›
RFHIC’s HM0225-05B is a gallium-nitride (GaN) hybrid power amplifier ideally suited for radio systems and electronic warfare jammer applications. Cover...

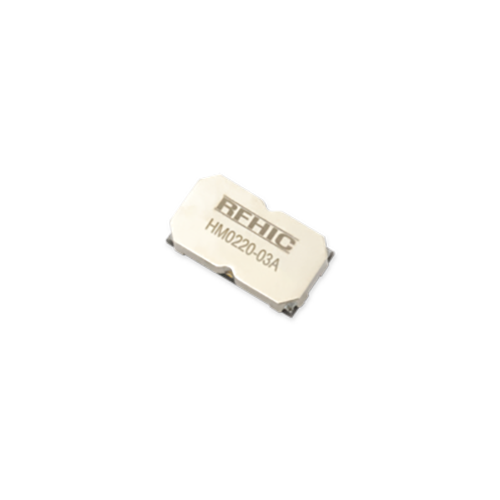

HM0220-03A ›
RFHIC’s HM0220-03A is a gallium-nitride (GaN) hybrid power amplifier ideally suited for radio systems and medical device applications. Covering from 20...

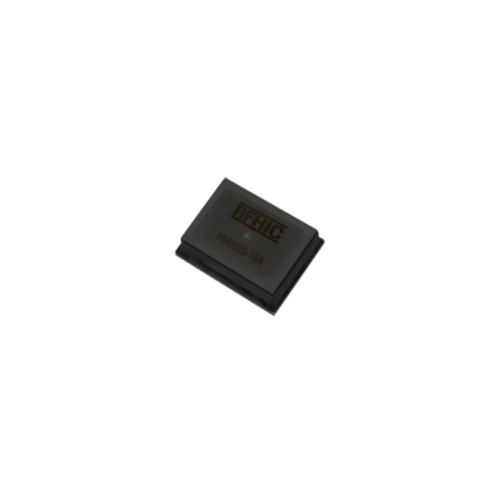

HM0005-10A ›
