SDM26003-30H

Hybrid Amplifiers - Wireless Infrastructure
Production
Contact
Sales

Description

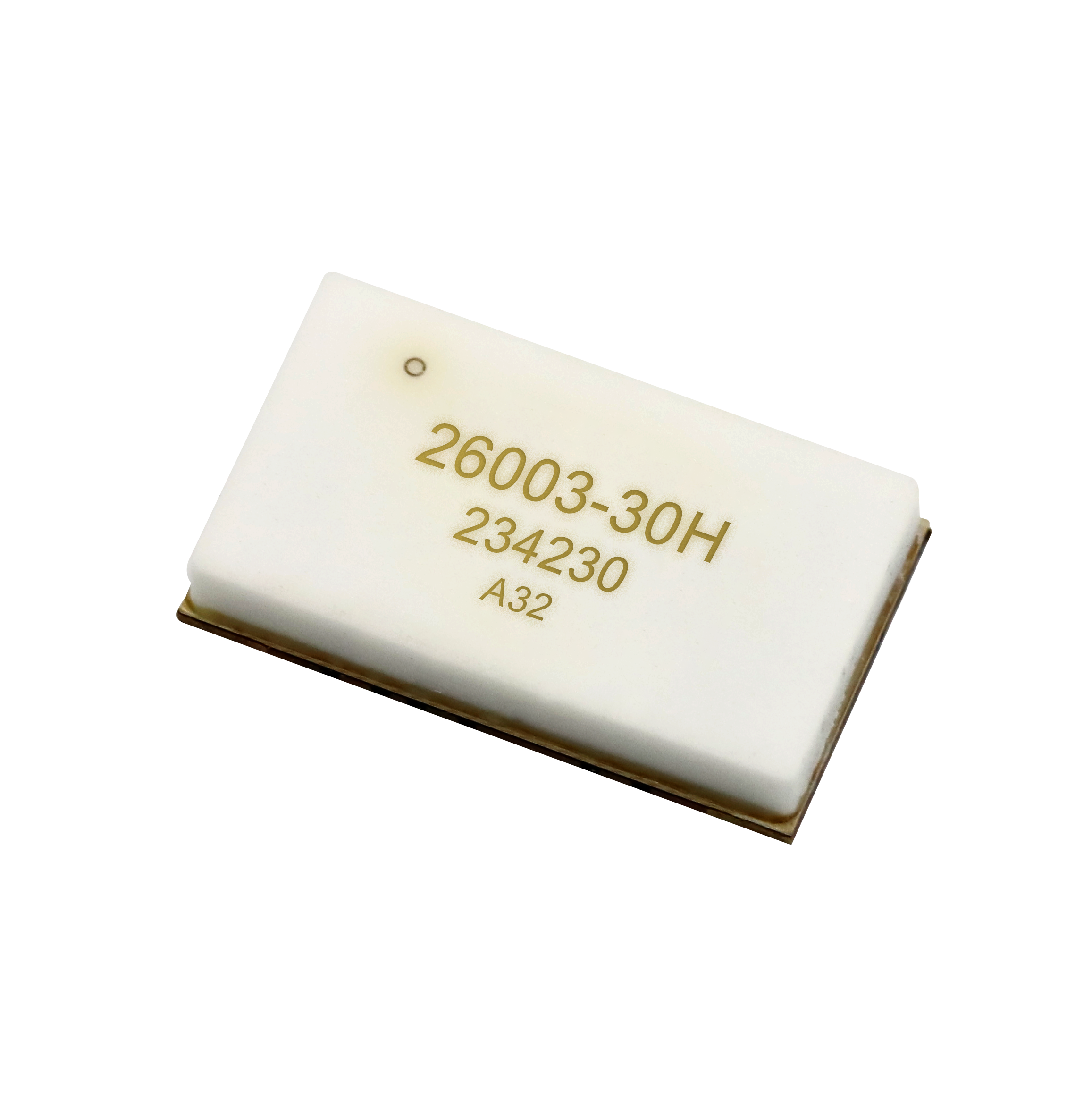

The 26003-30H is a fully integrated micro-strip GaN Hybrid power amplifier module designed for applications in 4G LTE MIMO systems, small cells and low power remote radio heads. 26003-30H operates from 2496 to 2690 MHz and delivers a saturated power of 44.7 W. This amplifier is internally matched to 50 ohms over the entire operating frequency range and provides a drain voltage of 48V. The 26003-30H is available in a packaged ceramic surface mount package that measures 8x14x2.6mm.

View Product Specification
4G LTE
MIMO
Drive Amplifier
Multi-Band
Multi-Carrier

Specification

Min Freq.(MHz) 2496MHz
Max Freq.(MHz) 2690MHz
Typ Output Power(W) 1.26W
Saturation Power(W) 44.7W
Power Gain(dB) 43dB
Efficiency 13%
VDC(V) 48
Package PP-3G
Package Type Surface Mount
