RIK154K0-40T
Description

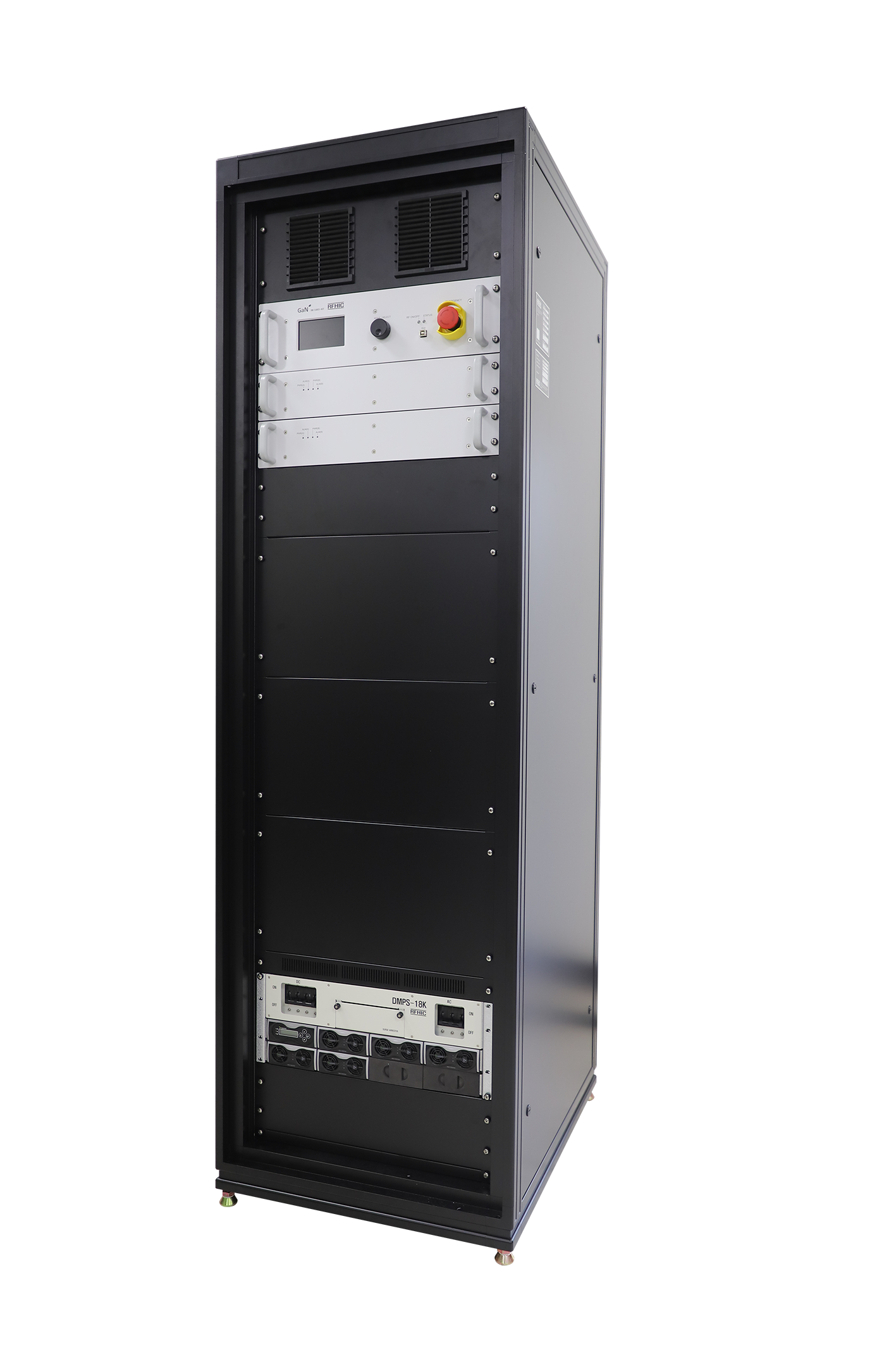

RFHIC’s RIK154K0-40T is a 4 kW, 1496-1502 MHz gallium-nitride on silicon carbide (GaN-on-SiC) solid-state power amplifier. Provides a minimum system efficiency of 55%. The RIK154K0-40T is an integrated product with two SSPA shelves, a power supply unit (PSU), a main control unit (MCU), and a 3 1/8 in EIA waveguide output port, all built into a single rack type unit. The RIK154K0-40T is equipped with high-grade isolators (circulators & term) to protect the device from reflected power, preventing system failure.
View Product Specification
Microwave Plasma Generation
Microwave Heating
Microwave CVD
Linear Accelerator
Specification
| Min Freq.(MHz) | 1496MHz |
|---|---|
| Max Freq.(MHz) | 1502MHz |
| Output Power(W) | 4000W |
| Efficiency | 55% |
| DC RF Efficiency(%) | 55% |
| VDC(V) | 50 |
| VAC(V) | 380~480 |
| Operating Mode | CW/Pulse |
| VSWR | 6:1 |
| Cooling | Water |
| Line Connection | 3P4W (L1/L2/L3/N) |
| Dimension(mm) | 600(W) x 750(D) x 2031(H) |
| Weight | 150kg |
| Interface | Ethernet |
| Waveguide Output | 3 1/8 in EIA |
Related Products
RIK0930K-40TG ›
RFHIC’s RIK0930K-40TG is a 30 kW, 915MHz gallium-nitride on silicon carbide (GaN-on-SiC) solid-state microwave generator operating from 900 ~ 930 MHz. ...
RIK2512K-40TG_H ›
RFHIC’s RIK2512K-40TG_H is a 12kW, 2.45GHz, GaN solid-state microwave generator system for plasma generation and microwave heating applications. The mi...

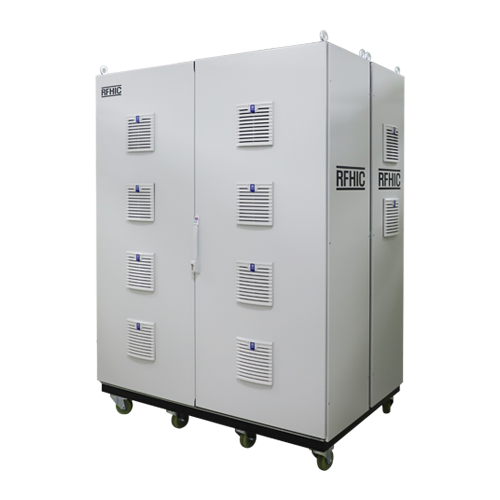

RIK0960K0-40TDG ›
