PRM29060-4S
Description

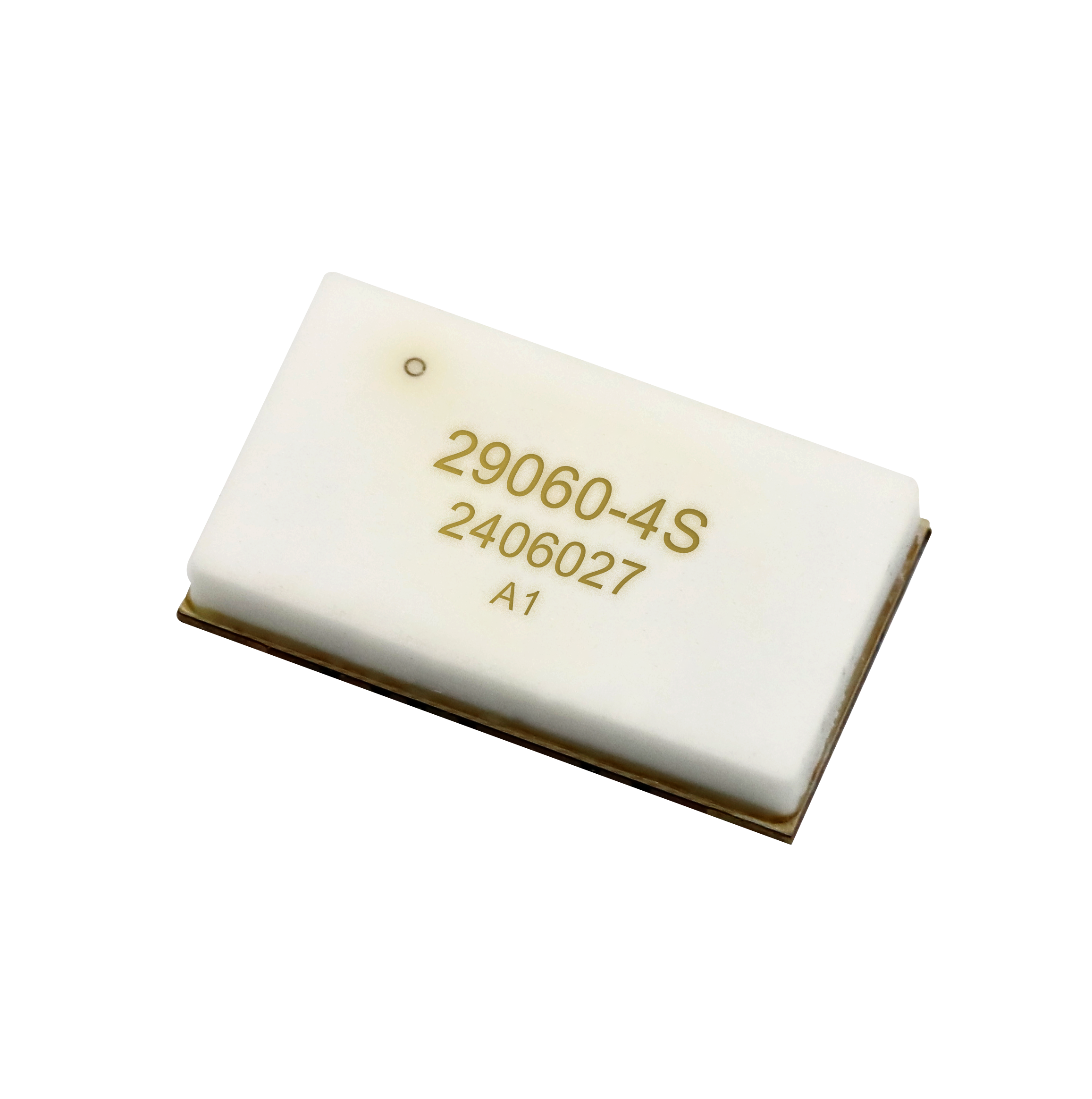

The PRM29060-4S is a fully integrated GaN Hybrid power amplifier module designed for applications in S-band military and commercial Radar Systems covered 2700~3100MHz. The PRM29060-4S provides 34dB of large-signal gain and 61% power added efficiency while achieving over 60W of saturated output power. The PRM29060-4S is matched to 50 ohms with integrated DC blocking capacitors on both I/O ports. This device is size 8x14x2.85mm and is packaged in a ceramic surface mount package.
Lead-free and RoHS compliant.
View Product Specification
Military Radar
Commercial Radar
Specification
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 2700MHz |
| Max Freq.(MHz) | 3100MHz |
| Type | PP-3G |
| Min Output Power | 60W |
| Typ Output Power(W) | 68W |
| Operating Mode | Pulse CW |
| Power Gain(dB) | 34dB |
| PAE(%) | 61% |
| VDC(V) | 48 |
