RRP9398080-49
Description

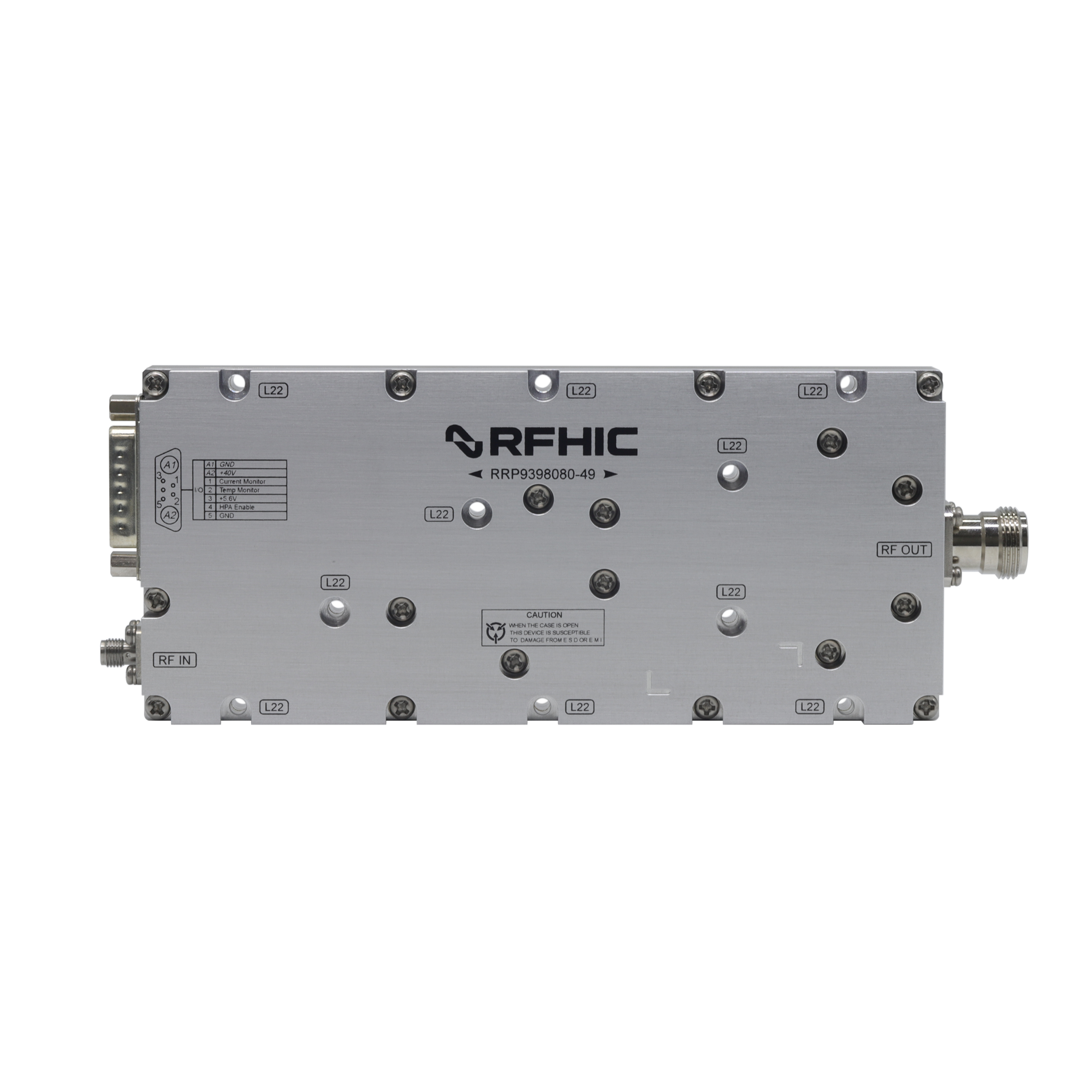

RFHIC’s RRP9398080-49 is an X-band, CW 80W, gallium-nitride (GaN) Power Amplifier designed for radar systems applications. Operating from 9300 to 9800 MHz, the RRP9398080-49 achieves 49dB of gain with an efficiency of 25%. The RRP9398080-49 is designed using RFHIC’s gallium-nitride on silicon carbide (GaN-on-SiC) high-electron-mobility (HEMT) technology, resulting in higher breakdown voltage, wider bandwidth, and higher efficiency.
View Product Specification
Radar
Jamming
Specification
| Band | X-band |
|---|---|
| Min Freq.(MHz) | 9300MHz |
| Max Freq.(MHz) | 9800MHz |
| Type | Pallet |
| Typ Output Power(W) | 80W |
| Power Gain(dB) | 49dB |
| PAE(%) | 25% |
| VDC(V) | 40 |
Related Products
RRP2735160-35 ›

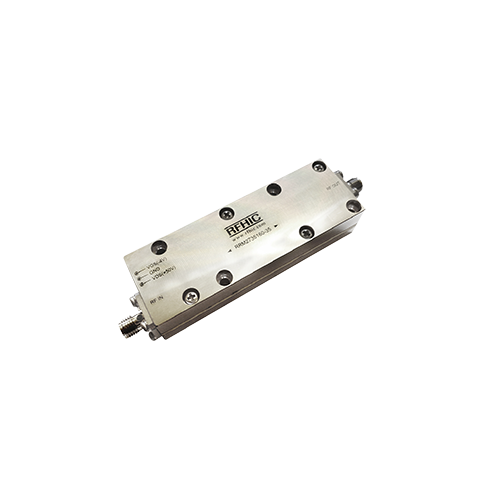

RFHIC’s RRP2735160-35 is an S-band, 180W, gallium-nitride (GaN) Power Amplifier designed for radar systems applications. Operating from 2700 to 3500 MH...
RRP27371K5-30 ›

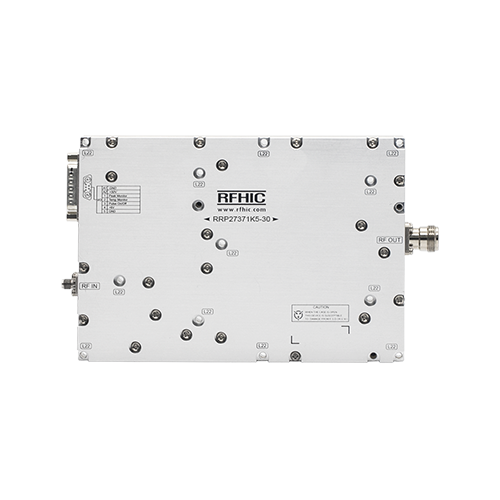

RFHIC’s RRP27371K5-30 is a 1.5kW, gallium-nitride (GaN) solid-state pulsed power amplifier operating at 2700 to 3700 MHz. This gallium-nitride (GaN) SS...
