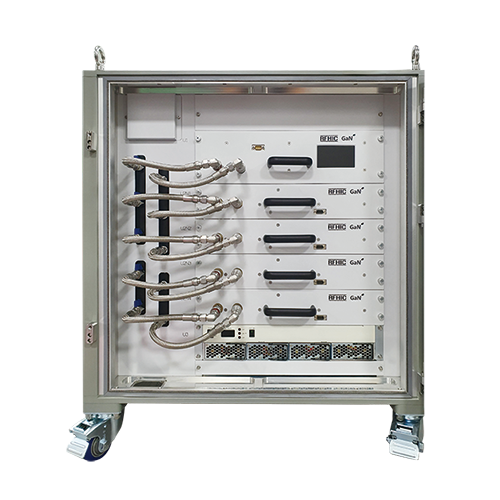

RRK20405K0-680
Description
RRK20405K0-680 uses GaN transistors and is designed for high-power radar applications at 2000 ~ 4000 MHz.This solid-state transmitter allows upgrading the existing VED (Vacuum Electronic Device, such as Klystron, Magnetron, Travelling Wave Tube, and Cross Field Amplifier) based transmitter for radar platforms.
View Product Specification
Weather Radar
Air Traffic Control Radar
Missile Tracking Radar
Surveillance Ground Radar
Meteorological Radar
Specification
| Band | S-band |
|---|---|
| Min Freq.(MHz) | 2000MHz |
| Max Freq.(MHz) | 4000MHz |
| Type | Rack |
| Min Output Power | 5000W |
| Operating Mode | Pulse |
| Power Gain(dB) | 52dB |
| VDC(V) | 50 |
| VAC(V) | 208, 3 Phase 4W |
| Cooling | Water |
| Line Connection | 3Phase 3Wire |
| Dimension(mm) | 706 (W) x 1005 (D) x 728 (H) |
| Weight | 276kg |
| Interface | Ethernet (TCP/IP) / LVDS |
| Waveguide Output | WRD200 |
Related Products

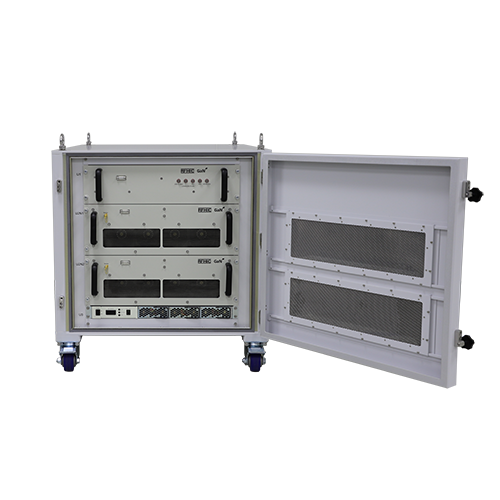

RRK56578K5-790 ›
