RIW09-AB010
Description
RFHIC’s RIW09-AB010 is a wr975, 2-way waveguide combiner that covers the full 900 to 930 MHz rated at 30kw CW power. The RIW09-AB010 supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
Military
Industrial/Commercial
Specification
| Band | L-band |
|---|---|
| Frequency Range | 900~930 MHz |
| # of Ways | 2-way |
| Power Handling @ Input | 30kw (CW) |
| VSWR | 1.2:1 |
| Dimension(mm) | 764 x 212.7 x 465 |
| Category | waveguide combiner |
| Waveguide Output | WR975 |
Related Products
RIW2431-AK300 ›
RFHIC’s RIW2431-AK300 is a WR340 right angle waveguide adapter the covers the full 2.17 to 3.3 GHz (s-band) rated at 2kw power. The RIW2431-AK300 suppo...
RIW09-AB000 ›
RFHIC’s RIW09-AB000 is a wr975, 4-way waveguide combiner that covers the full 900 to 930 MHz (L-band) rated at 1.6kw peak power. The RIW09-AB000 suppor...

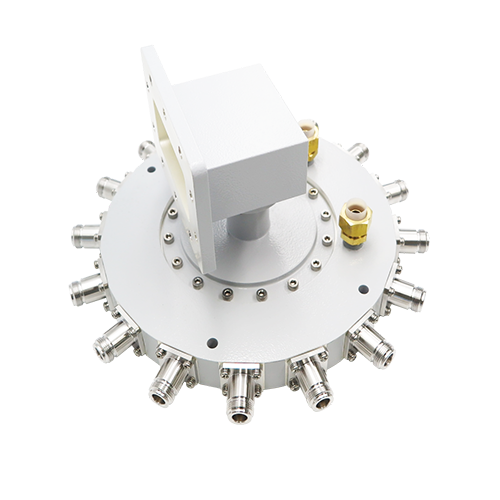

RIW2829-AD000 ›
