RWAE340-100DM00
Description

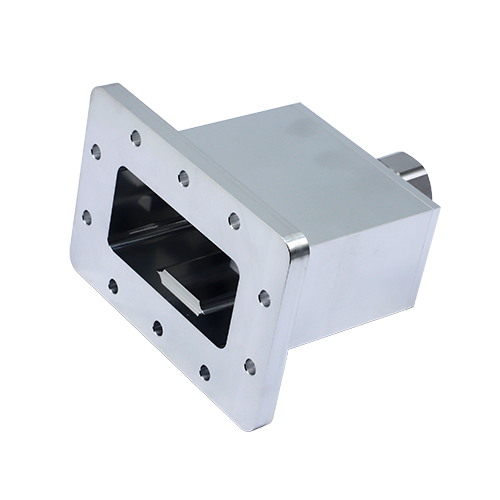

RFHIC’s RWAE340-100DM00 is a WR340, 7/16 (Male) waveguide end launch adapter that covers the full 2.17 to 3.3 GHz rated at 2kw power. The RWAE340-100DM00 supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
S-band High Power SSPA Test
WR340 RF Test
Specification
| Band | s-band |
|---|---|
| Frequency Range | 2.170 ~ 3,300MHz |
| Power Handling @ Input | 2kW |
| VSWR | 1.2:1 |
| Dimension(mm) | 138.2 X 132.7X 95.3 mm |
| Category | waveguide endlaunch adapter |
| Waveguide Output | WR340 |
