RIW2425-12K
Description

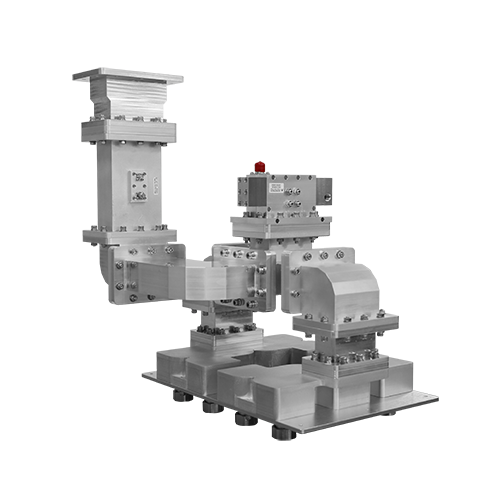

RFHIC’s RIW2425-12K is an 8-way, wr430 waveguide combiner that covers the full 2400 to 2500 (S-band) with a power handling rating of 1.6kw CW. The RIW2425-12K supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
High power SSPA combining
CVD M/W source combining
Semiconductor equipment
M/W heating, dry & sintering
Specification
| Band | S-band |
|---|---|
| Frequency Range | 2.4-2.5 GHz |
| # of Ways | 8-way |
| Power Handling @ Input | 1.6kW CW |
| VSWR | <1.3:1 |
| Dimension(mm) | 387 x 260 x 522 |
| Category | waveguide combiner |
| Waveguide Output | WR430 |
Related Products

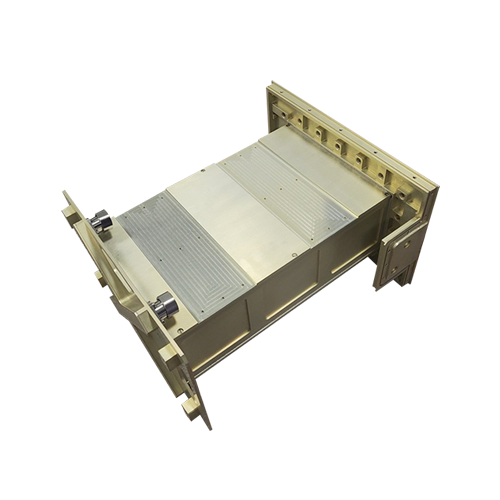

RIW09-AB000 ›
RFHIC’s RIW09-AB000 is a wr975, 4-way waveguide combiner that covers the full 900 to 930 MHz (L-band) rated at 1.6kw peak power. The RIW09-AB000 suppor...

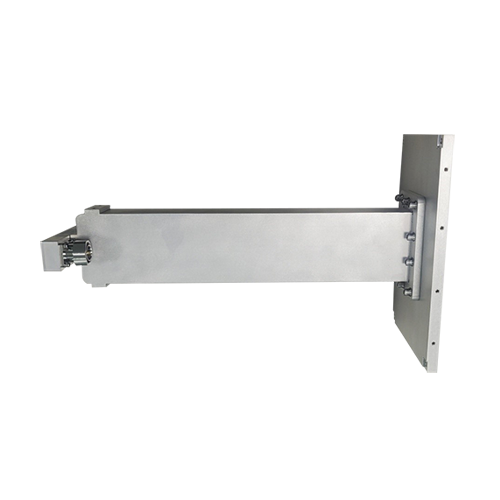

RIW2425-AB020 ›
