RIW2829-AD000
Description

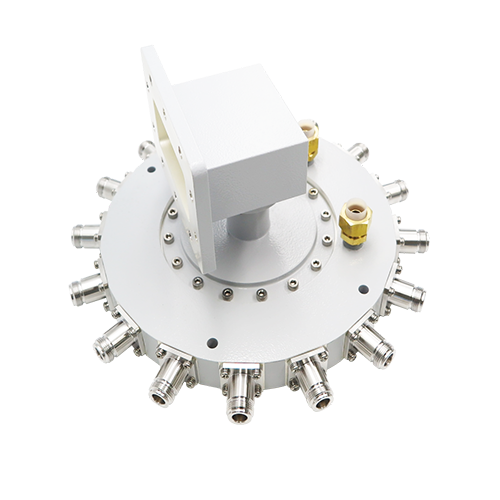

RFHIC’s RIW2829-AD000 is a 16-way, wr284 radial combiner that covers the full 2.8 to 2.9 GHz (s-band) rated at 1.4kw peak power. The RIW2829-AD000 supports various military and commercial applications. Additional connector configurations are available upon request.
View Product Specification
Military
Industrial/Commercial
Specification
| Band | S-band |
|---|---|
| Frequency Range | 2.8~2.9 GHz |
| # of Ways | 16-way |
| Power Handling @ Input | 1.4kW (Peak) |
| VSWR | <1.2:1 |
| Dimension(mm) | 249.4 x 249.4 x 135.5 |
| Category | radial combiner |
| Waveguide Output | WR284 |
Related Products
RIW2829-AD000 ›
RFHIC’s RIW2829-AD000 is a 16-way, wr284 radial combiner that covers the full 2.8 to 2.9 GHz (s-band) rated at 1.4kw peak power. The RIW2829-AD000 sup...
RIW2425-6K-0 ›

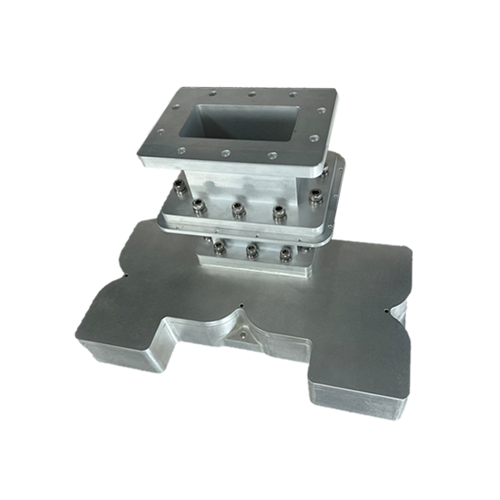

RFHIC’s RIW2425-6K-0 is a 4-way, H-plane waveguide combiner that covers the full 2.4 to 2.5 GHz (S-band) rated at 1.6kw CW power. The RIW2425-6K-0 prov...
