RWS03020-11
Description

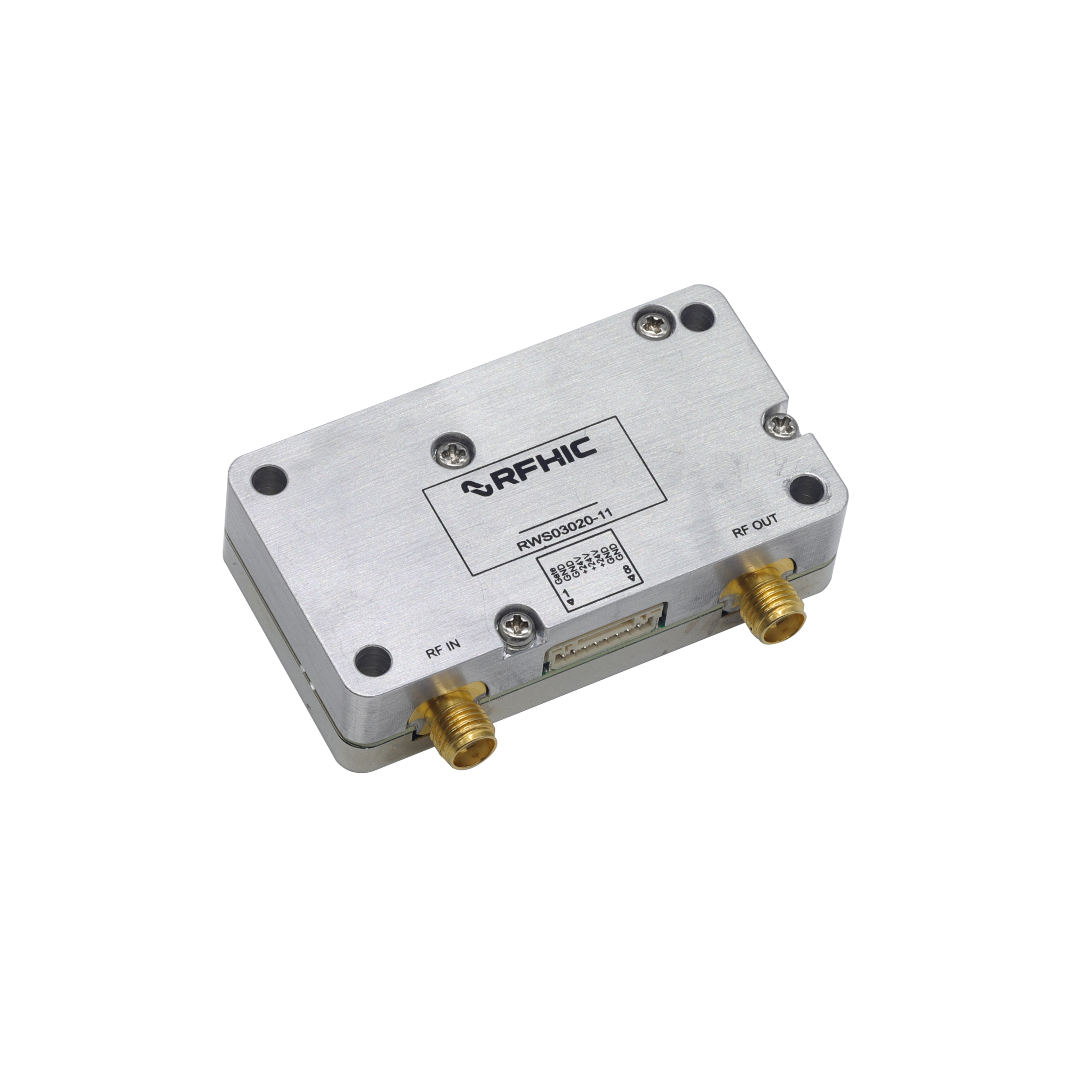

RFHIC’s RWS03020-11 is a 10 W, gallium-nitride (GaN) Wideband Power Amplifier designed for various defense applications. This gallium-nitride (GaN) wideband amplifier operates from 20 to 450 MHz and offers high reliability and ruggedness. The RWS03020-11 is fabricated using RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) transistors, providing the industry’s best size, weight, and power (SWaP).
View Product Specification
General Purposes
Communications
Jamming
Specification
| Min Freq.(MHz) | 20MHz |
|---|---|
| Max Freq.(MHz) | 450MHz |
| Type | Pallet |
| Typ Output Power(W) | 10W |
| Power Gain(dB) | 40dB |
| VDC(V) | 28 |
