RWP1027200-53
Description
RFHIC’s RWP1027200-53 is a 200W, gallium-nitride (GaN) Wideband Power Amplifier designed for various defense applications. This gallium-nitride (GaN) wideband amplifier operates from 1000 to 2500 MHz and offers high reliability and ruggedness. The RWP1027200-53 is fabricated using RFHIC’s state-of-the-art gallium-nitride on silicon carbide (GaN-on-SiC) transistors, providing the industry’s best size, weight, and power (SWaP).
View Product Specification
Aerospace & Defense
Military
Electronic Warfare
Radar
Specification
| Min Freq.(MHz) | 1000MHz |
|---|---|
| Max Freq.(MHz) | 2500MHz |
| Type | Pallet |
| Typ Output Power(W) | 200W |
| Power Gain(dB) | 50dB |
| Efficiency | 33% |
Related Products

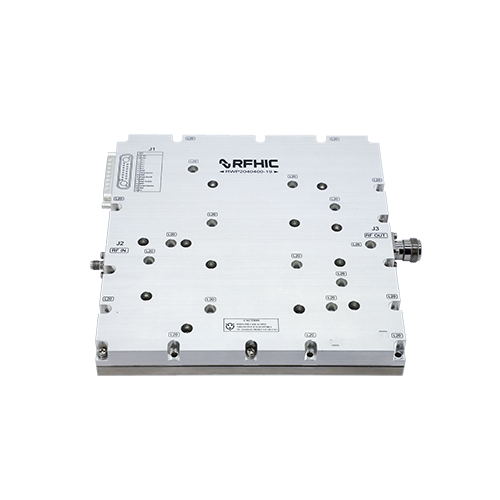

RWP2040400-19 ›
The RWP2040400-19 is a 400W, pulsed GaN solid-state power amplifier operable at S-band. The RWP2040400-19 is fabricated with RFHIC’s state-of-the-art g...
RWP2060080-50 ›
RFHIC’s RWP2060080-50 is a 100W, gallium-nitride (GaN) Wideband Power amplifier designed for various electronic warfare applications. This gallium-nitr...
RWP15080-10 ›
RFHIC’s RWP15080-10 is a gallium-nitride-on silicon carbide (GaN-on-SiC) wideband amplifier suited for broadcasting and communication system applicatio...

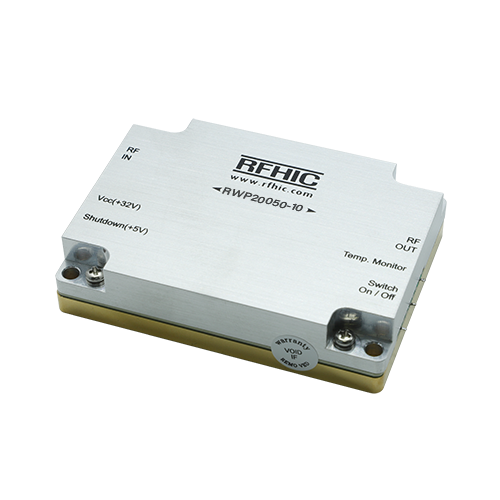

RWP20050-10 ›
RFHIC’s RWP20050-10 is a gallium-nitride-on silicon carbide (GaN-on-SiC) wideband amplifier suited for broadcasting and communication system applicatio...
