RIU243K0-40TG
Description

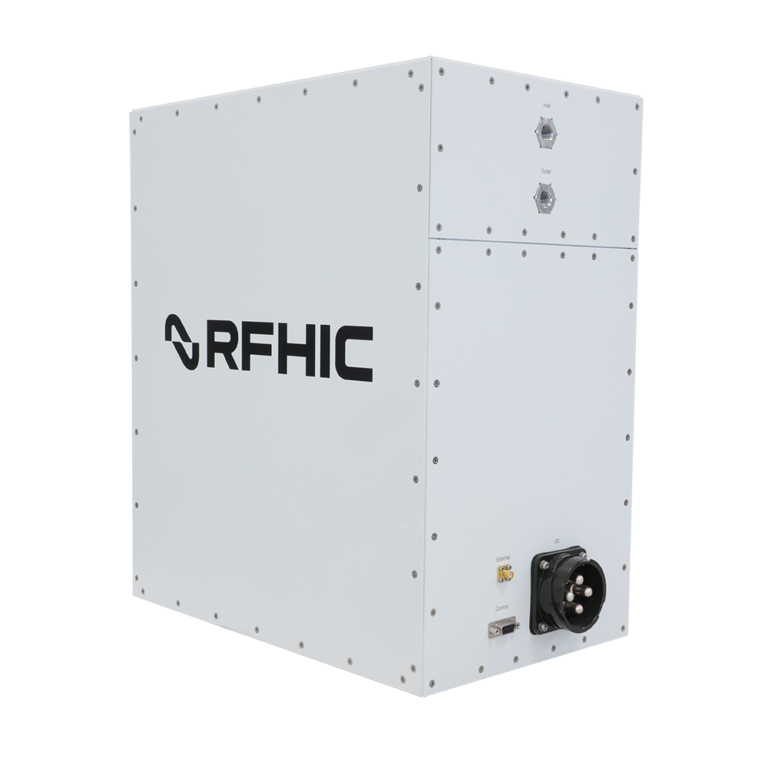

RFHIC’s RIU243K0-40TG is a 3kW, solid-state microwave generator designed for microwave heating and plasma generation applications. The RIU243K0-40TG is built with RFHIC’s state-of-the-art gallium nitride on silicon carbide (GaN on SiC) technology and is operable from 2400 to 2500 MHz.The RIU243K0-40TG is a remote-type microwave generator where the SSPA head is separate from the control module and PSU, allowing for greater flexibility. The RIU243K0-40TG is a turn-key microwave generator system with a 3kW SSPA head, an internal WR340 waveguide, a control module, a 380 VAC 3 phase 4 wire 50/60 Hz power supply unit, and RF cables.
View Product Specification
Microwave Heating
Microwave Drying
Plasma Generation
Magnetron Replacement
Specification
| Min Freq.(MHz) | 2400MHz |
|---|---|
| Max Freq.(MHz) | 2500MHz |
| Output Power(W) | 3000W |
| DC RF Efficiency(%) | 58% |
| VDC(V) | 50 |
| VAC(V) | 304~456 |
| Operating Mode | CW |
| VSWR | 6:1 |
| Cooling | Water |
| Line Connection | 3P4W: (L1/L2/L3/N) |
| Dimension(mm) | 305(W) x 211(D) x 516(H) |
| Weight | 31kg |
| PSU Weight | 17kg |
| Interface | D-Sub 9-Pin |
| Waveguide Output | WR340 |
