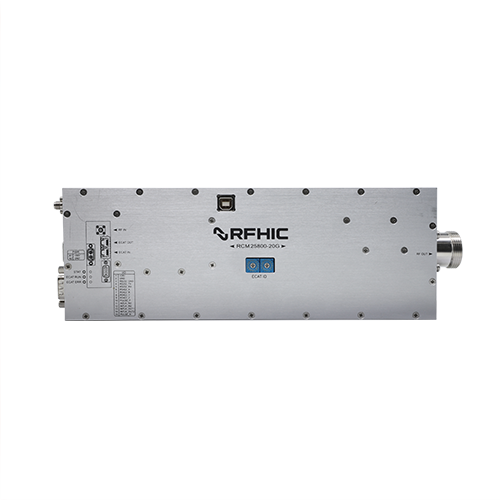

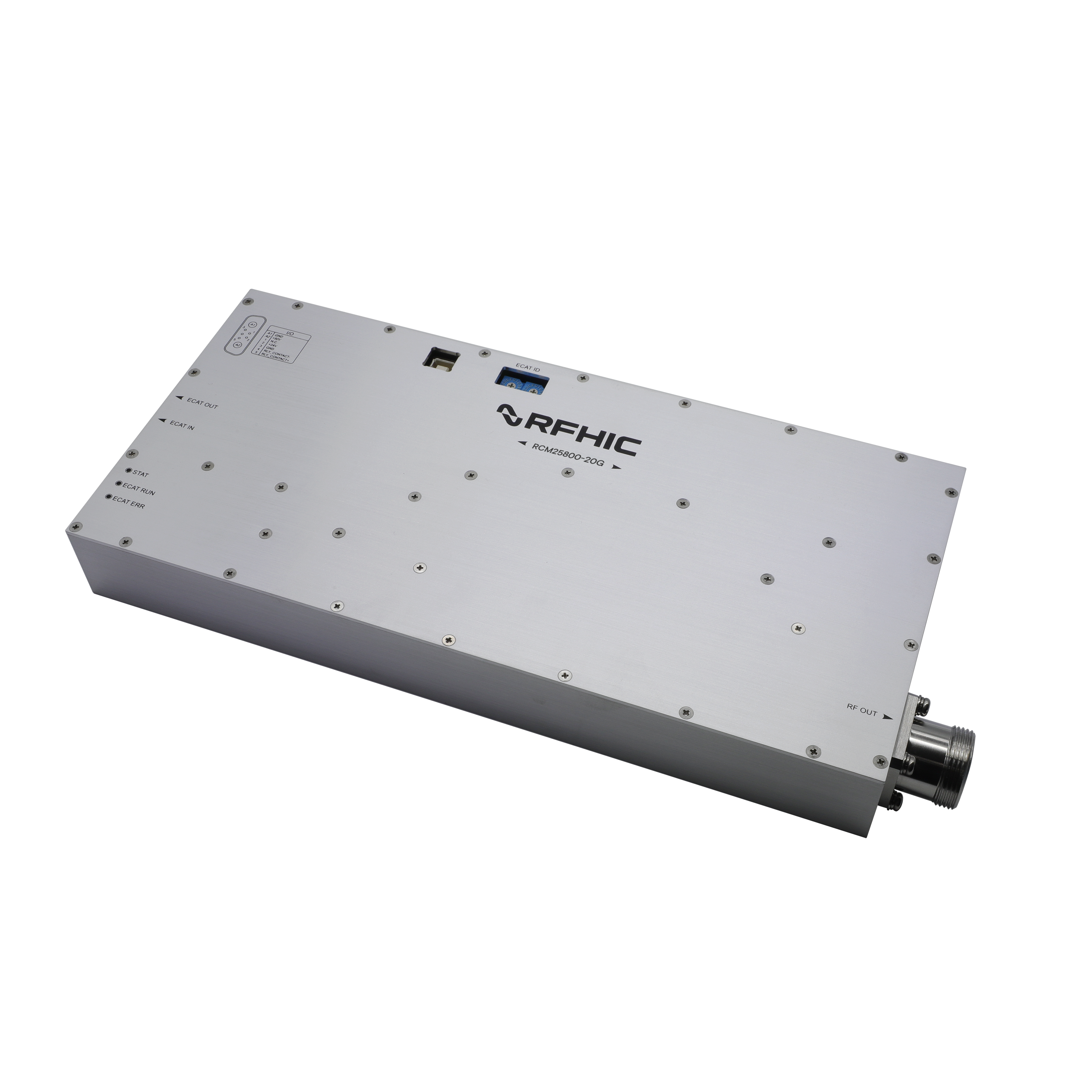

RCM25800-20G

Description

The RCM2800-20G is a 800 W, GaN solid-state microwave generator designed ideally for microwave heating and plasma generation applications. The RCM25800-20G is a module type generator that provides continuous wave (CW) and or pulse output power adjustable from 10 W to 800 W at frequencies ranging between 2400 MHz and 2500 MHz. The RCM2800-20G is built with RFHIC’s state-of-the-art gallium-nitride (GaN) on silicon-carbide (SiC) transistors, providing high power levels and high system efficiency. The RCM2800-20G is equipped with a phase-lock-loop (PLL) synthesizer that generates a signal without an external source. RCM2800-20G supports Ethercat-style communication. The compact generator is designed ideally for industrial and medical applications.
