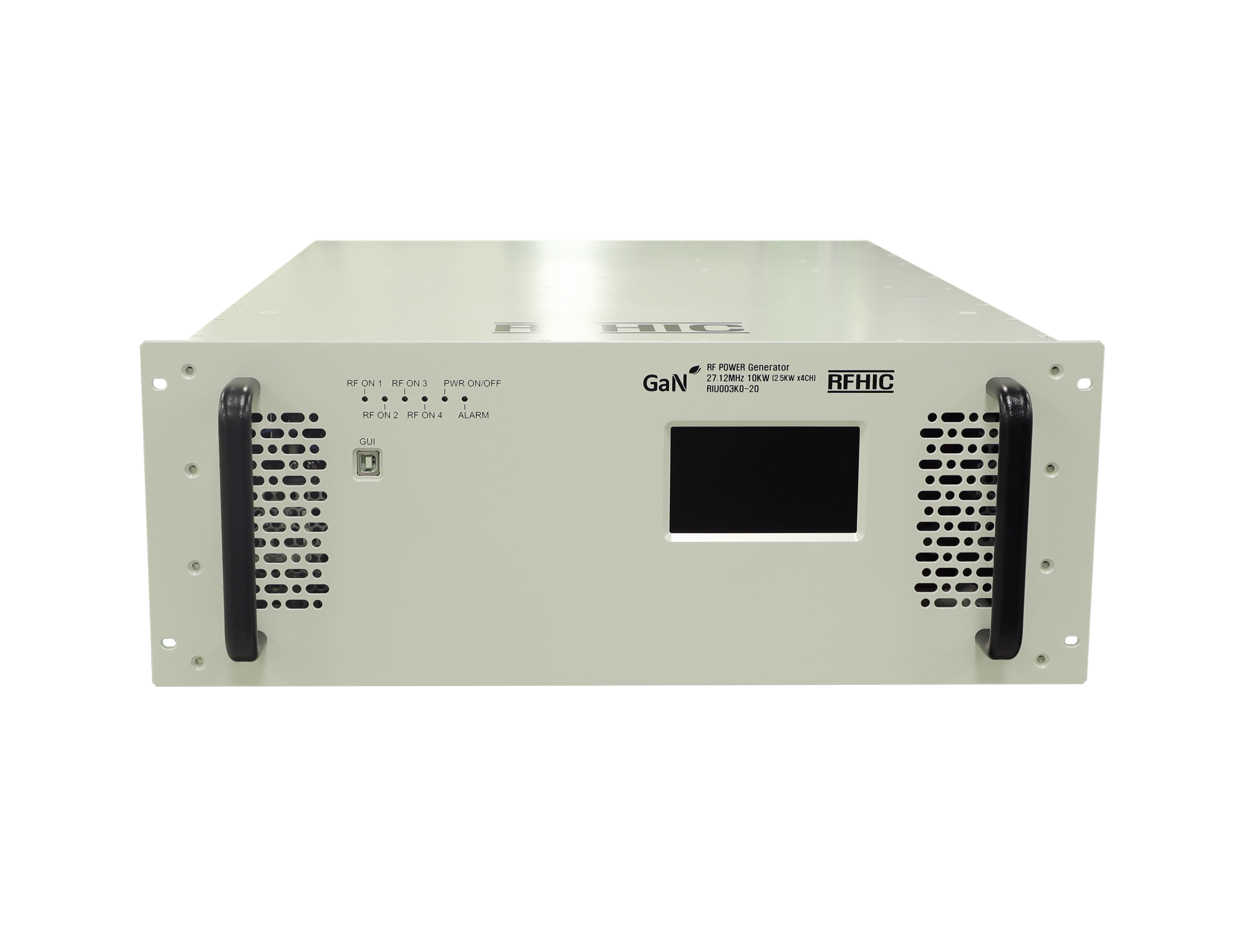

RIU003K0-20

Microwave Generators
Sample Available for purchase
Contact
Sales Download Datasheet

Description

The RIU003K0-20 is a 2.5kW, 4-channel microwave generator that provides continuous wave (CW) and/or pulse output power, adjustable from 100W to 2500W at 27.12 MHz. Designed ideally for microwave heating and plasma generation applications, the RIU003K0-20 is a remote-type system with the SSPA head and power supply unit separated. It is the industry’s most cost-effective solution, offering greater system flexibility. It delivers performance repeatability and reliability you can depend on.

View Product Specification

Datasheet
MW Heating and Drying
Medical Equipment
Semiconductor Equipment PVD, PECVD, Etch

Specification

Min Freq.(MHz) 25.8MHz
Max Freq.(MHz) 28.5MHz
Output Power(W) 2500W
Efficiency 60%
RF Output Connector HN Female (3/4-20UNEF-2A)
Cooling Forced Air Cooling + Water Cooling
Dimension(mm) 446 (W) x 640 (D) x 172 (H)
Weight 60kg
